Šifra 331561
LE-VE 125R-FI-SG

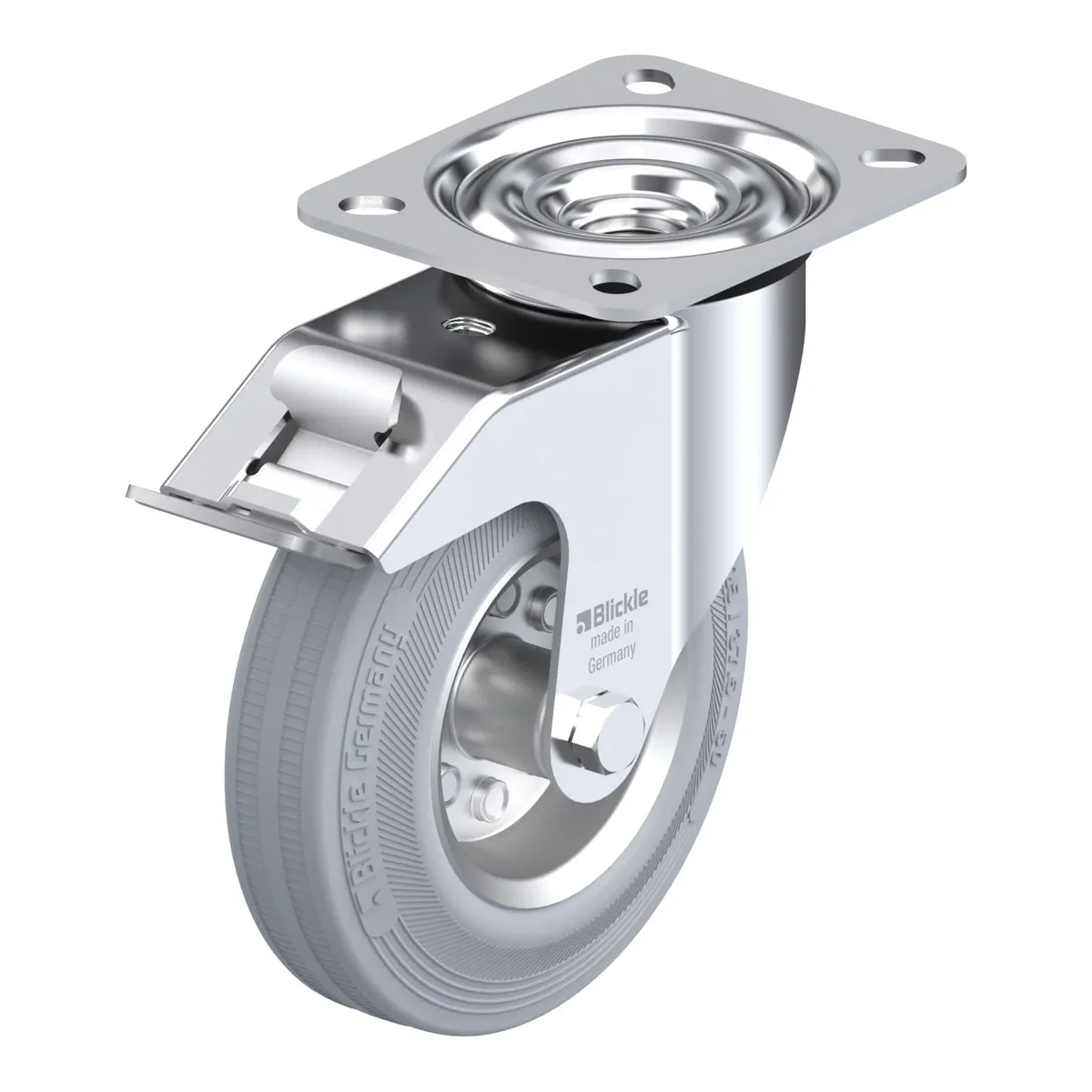

Okretni točkić, Blickle, Made in Germany
Ukratko: LE-VE 125R-FI-SG je okretni točkić Blickle promjera 125 mm, širine 37.5 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 150 mm. Cijena je 57.25 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, non-marking, grey
57.25 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 331561 |
|---|---|
| EAN | 4047526331566 |
| Promjer točka | 125 mm |
| Širina točka | 37.5 mm |
| Ukupna visina | 150 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
