MHC Tradetočkići.ba

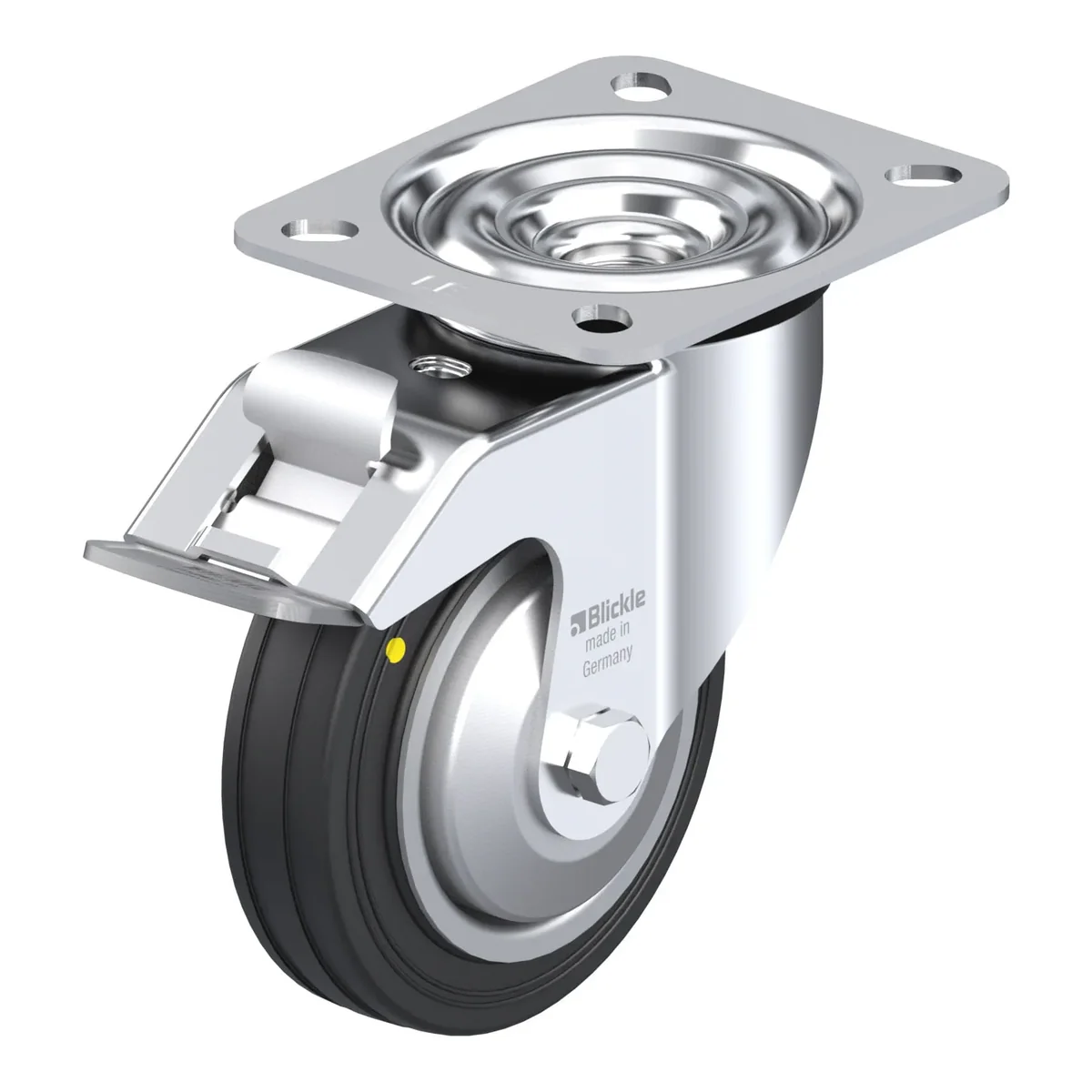

LE-VE 100R-FI-EL-FA – okretni točkić Blickle

Šifra 749705

LE-VE 100R-FI-EL-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LE-VE 100R-FI-EL-FA je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 125 mm. Cijena je 63.45 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with pressed steel rim, with steel thread guard, electrically conductive

63.45 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749705
EAN4047526015800
Promjer točka100 mm
Širina točka30 mm
Ukupna visina125 mm
Nosivost pri 4 km/h70 kg
Statička nosivost175 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset36 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour black
  • rim: pressed steel, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
