Šifra 607747

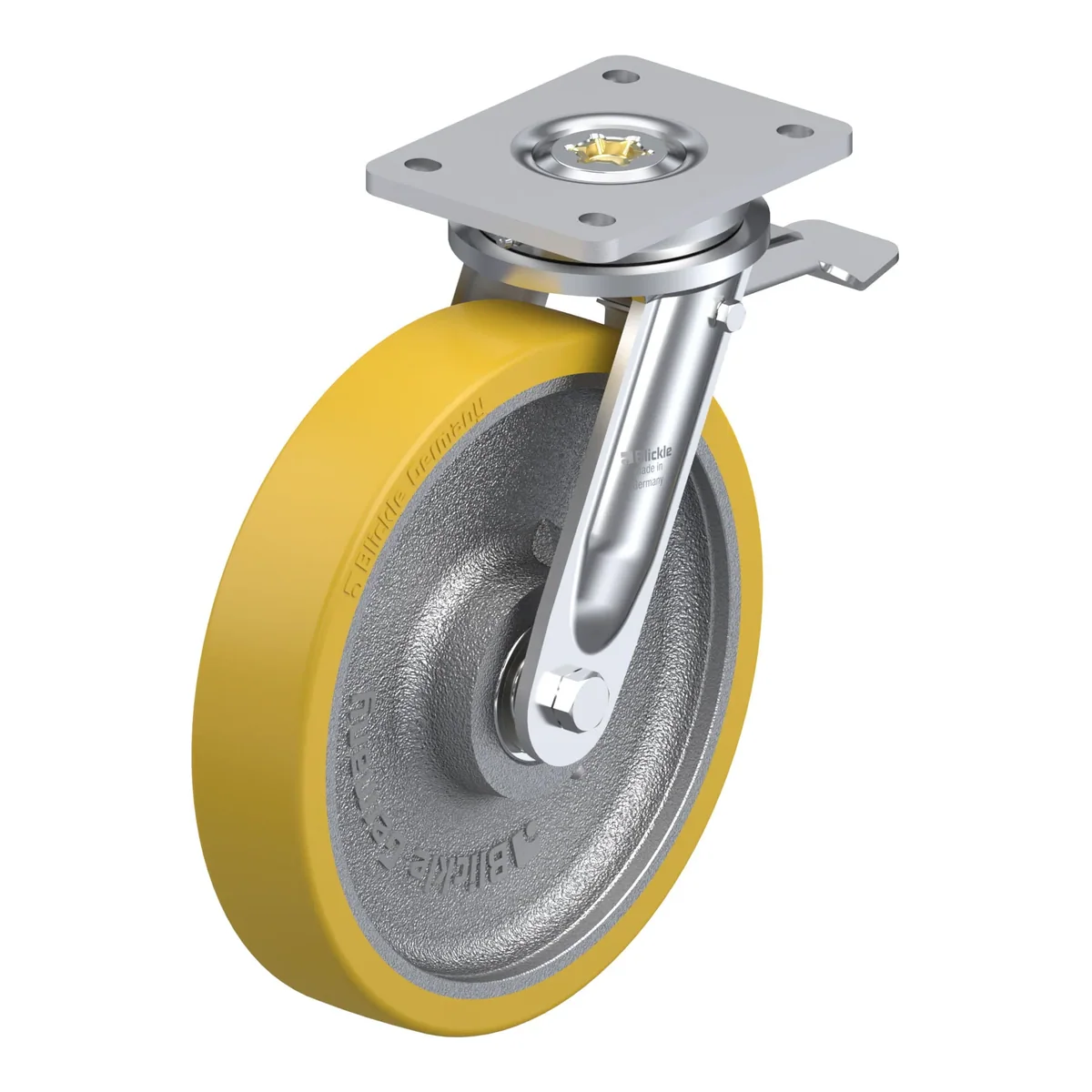

LO-GTH 251K-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: LO-GTH 251K-ST je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 1200 kg pri 4 km/h (statički 3000 kg). Ukupna visina je 295 mm. Cijena je 549.30 KM s PDV-om.
Heavy duty welded steel swivel castor, with brake system 'stop-top', heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
549.30 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 607747 |
|---|---|
| EAN | 4047526607746 |
| Promjer točka | 250 mm |
| Širina točka | 50 mm |
| Ukupna visina | 295 mm |
| Nosivost pri 4 km/h | 1200 kg |
| Statička nosivost | 3000 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 70 mm |
| Ne ostavlja tragove | da |
Nosač
- solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- four specially-shaped, hardened bearing seatsfor additional strength
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: rugged grey cast iron
- with grease nipple, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
