MHC Tradetočkići.ba

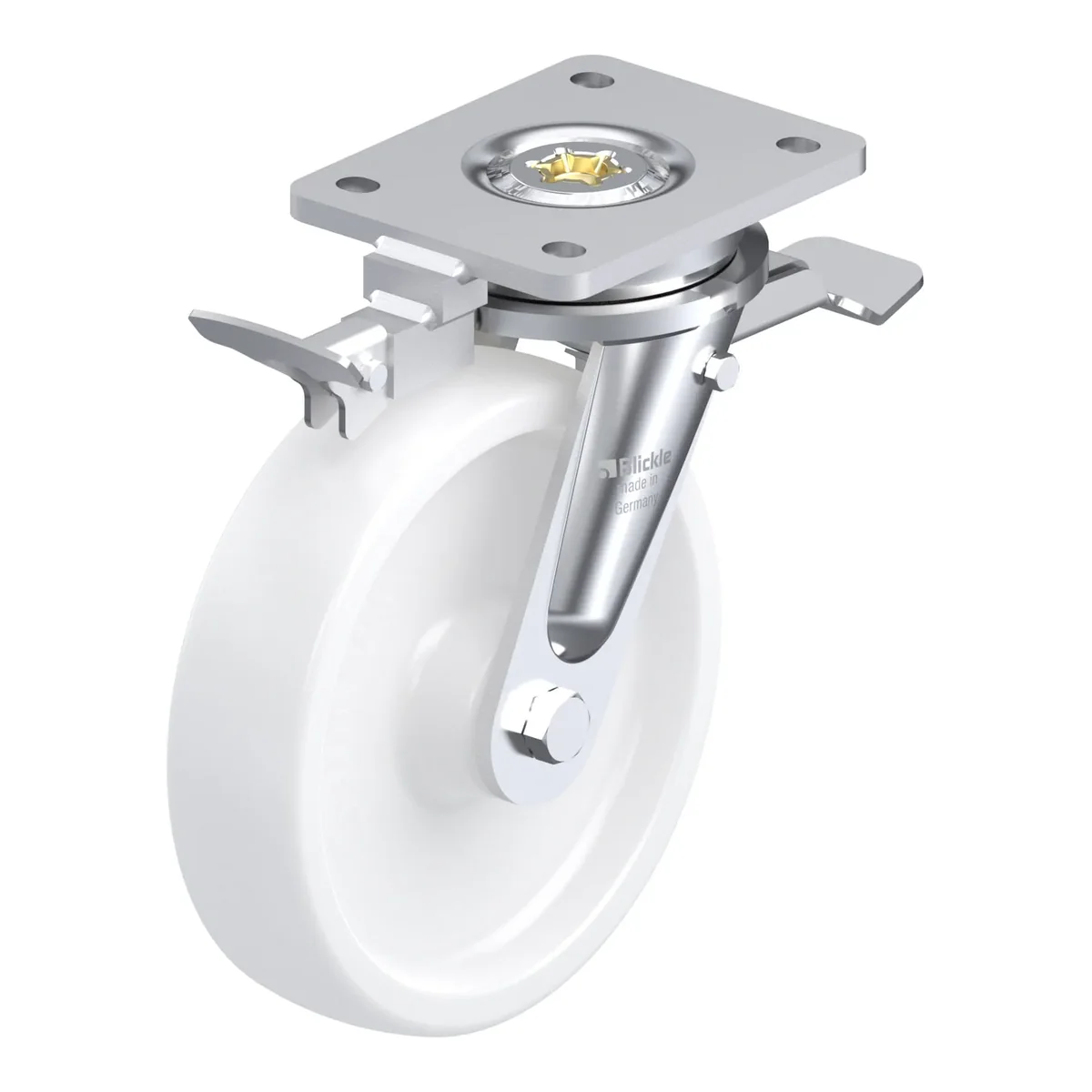

LO-SPO 201G-ST-RI4 – okretni točkić Blickle

Šifra 853003

LO-SPO 201G-ST-RI4

Okretni točkić, Blickle, Made in Germany

Ukratko: LO-SPO 201G-ST-RI4 je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1000 kg pri 4 km/h (statički 2500 kg). Ukupna visina je 245 mm. Cijena je 425.63 KM s PDV-om.

Heavy duty welded steel swivel castor, with brake system 'stop-top', with directional lock, nylon heavy duty wheel

425.63 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853003
EAN4047526199852
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h1000 kg
Statička nosivost2500 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm
Ne ostavlja tragoveda

Nosač

  • solid welded steel construction, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • four specially-shaped, hardened bearing seatsfor additional strength
  • bolted and secured welded central kingpin, extremely strong
  • swivel head seal with labyrinth design
  • grease nipple

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
