Šifra 500165
LEX-PO 80G-FI

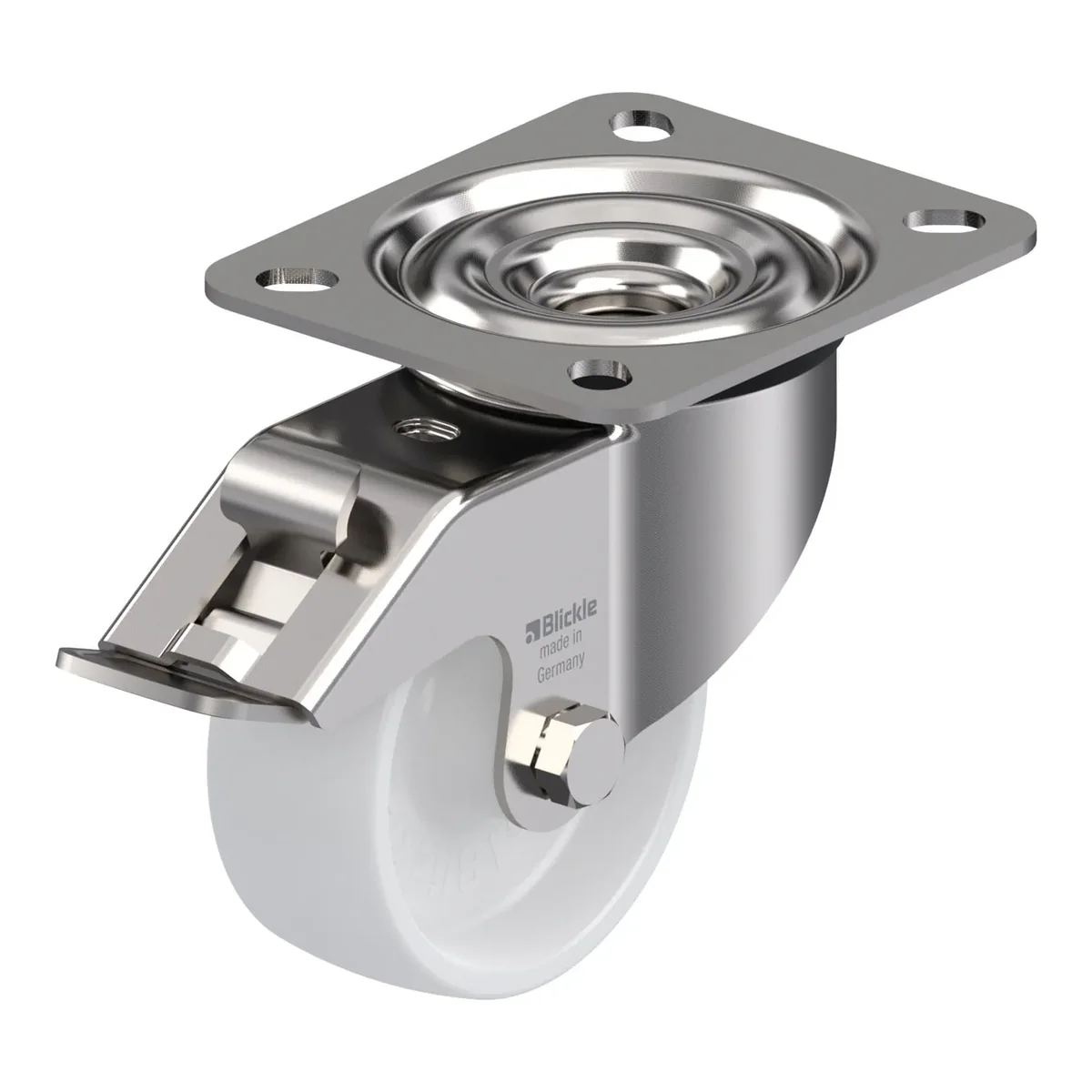

Okretni točkić, Blickle, Made in Germany
Ukratko: LEX-PO 80G-FI je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 102 mm. Cijena je 93.46 KM s PDV-om.
Stainless steel swivel castor, with top plate fitting, with brake system 'stop-fix', nylon wheel
93.46 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 500165 |
|---|---|
| EAN | 4047526500160 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 37 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
