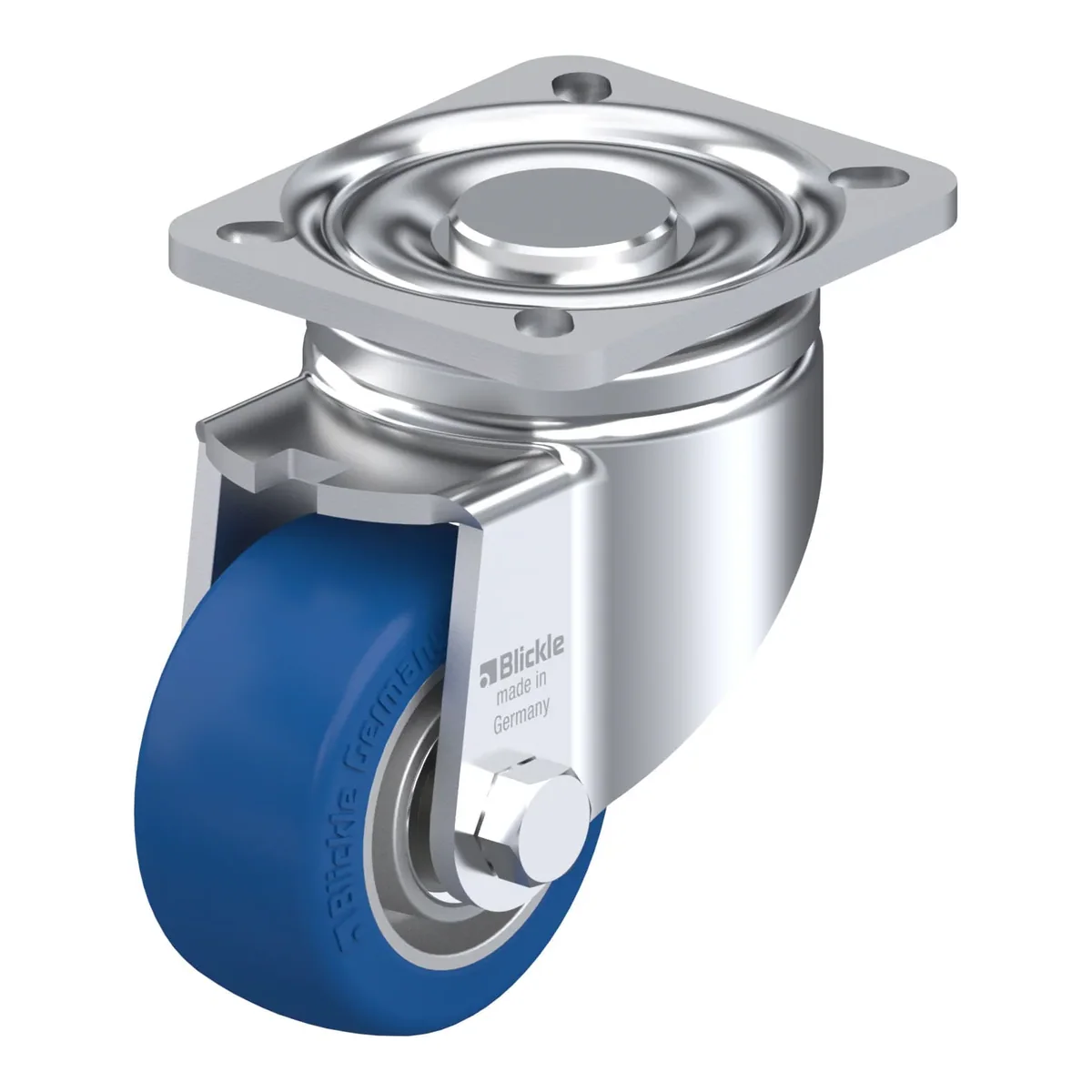

LH-ALBS 82K – okretni točkić Blickle

Šifra 754577

LH-ALBS 82K

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-ALBS 82K je okretni točkić Blickle promjera 80 mm, širine 40 mm, nosivosti 230 kg pri 4 km/h (statički 575 kg). Ukupna visina je 120 mm. Cijena je 150.05 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre

150.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754577
EAN4047526076320
Promjer točka80 mm
Širina točka40 mm
Ukupna visina120 mm
Nosivost pri 4 km/h230 kg
Statička nosivost575 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
