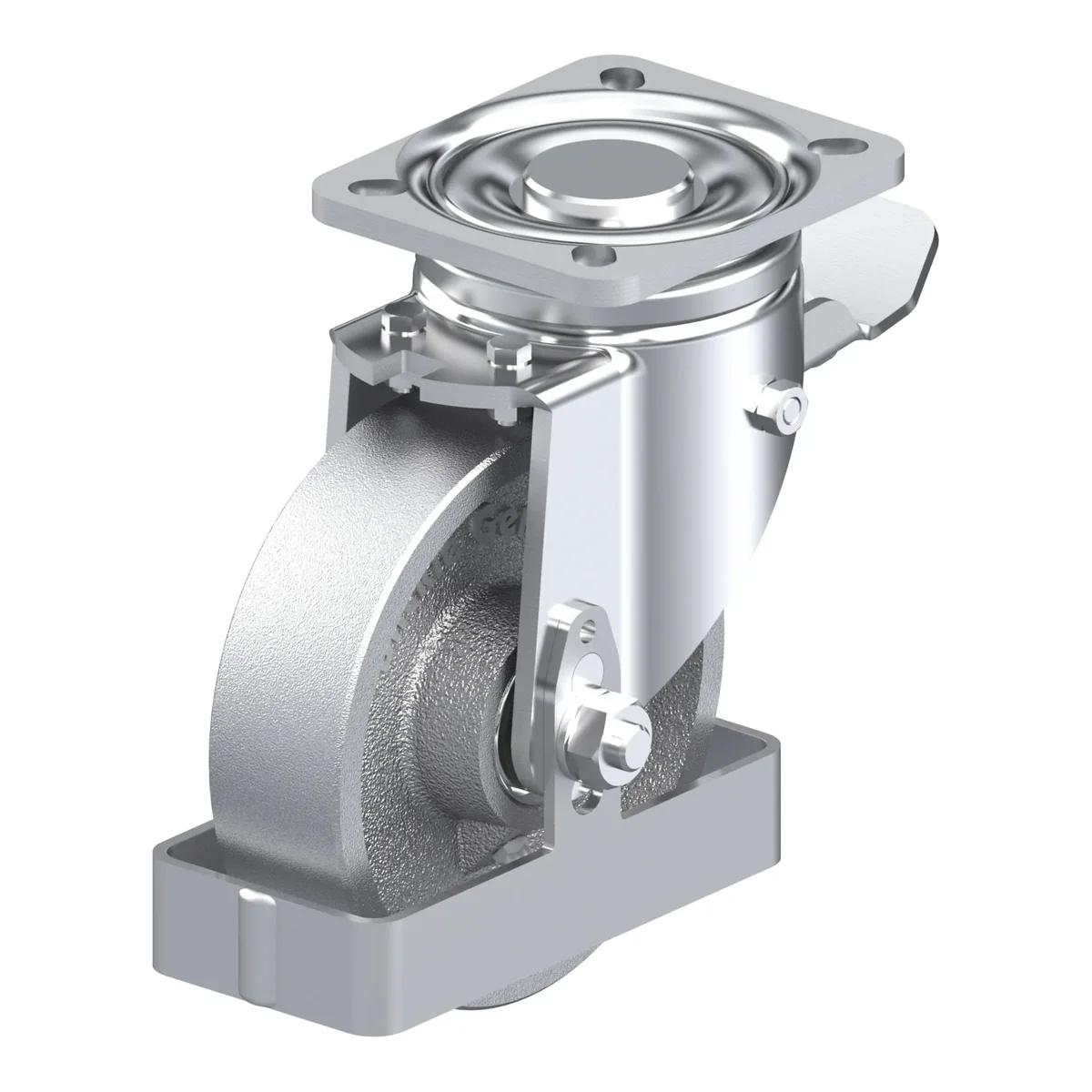

LH-G 125K-1-ST-FS – okretni točkić Blickle

Šifra 940288

LH-G 125K-1-ST-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-G 125K-1-ST-FS je okretni točkić Blickle promjera 125 mm, širine 35 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 165 mm. Cijena je 248.31 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top', steel foot guard, cast iron wheel

248.31 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla940288
EAN4047526411084
Promjer točka125 mm
Širina točka35 mm
Ukupna visina165 mm
Nosivost pri 4 km/h450 kg
Statička nosivost1125 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • consider the surface pressure on sensitive floors due to high point loads
  • to be lubricated according to the application temperature
