Šifra 742552
LS-G 200K-ST-FS
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-G 200K-ST-FS je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1100 kg pri 4 km/h (statički 2750 kg). Ukupna visina je 245 mm. Cijena je 497.98 KM s PDV-om.

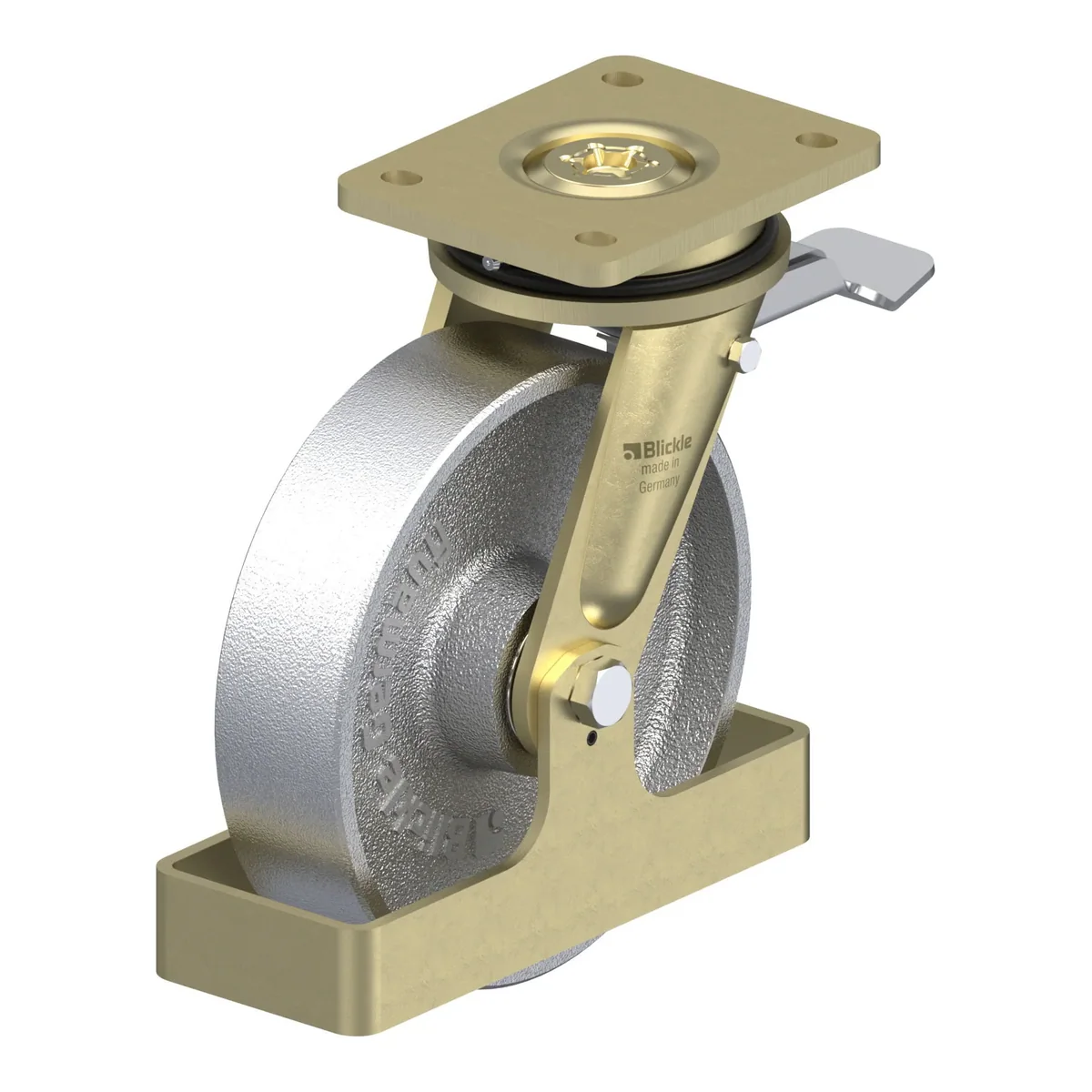

Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', steel foot guard, cast iron wheel
497.98 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 742552 |
|---|---|
| EAN | 4047526102937 |
| Promjer točka | 200 mm |
| Širina točka | 50 mm |
| Ukupna visina | 245 mm |
| Nosivost pri 4 km/h | 1100 kg |
| Statička nosivost | 2750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 60 mm |
| ESD zaštita | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- to be lubricated according to the application temperature
