Šifra 742205
LH-GB 100K-3

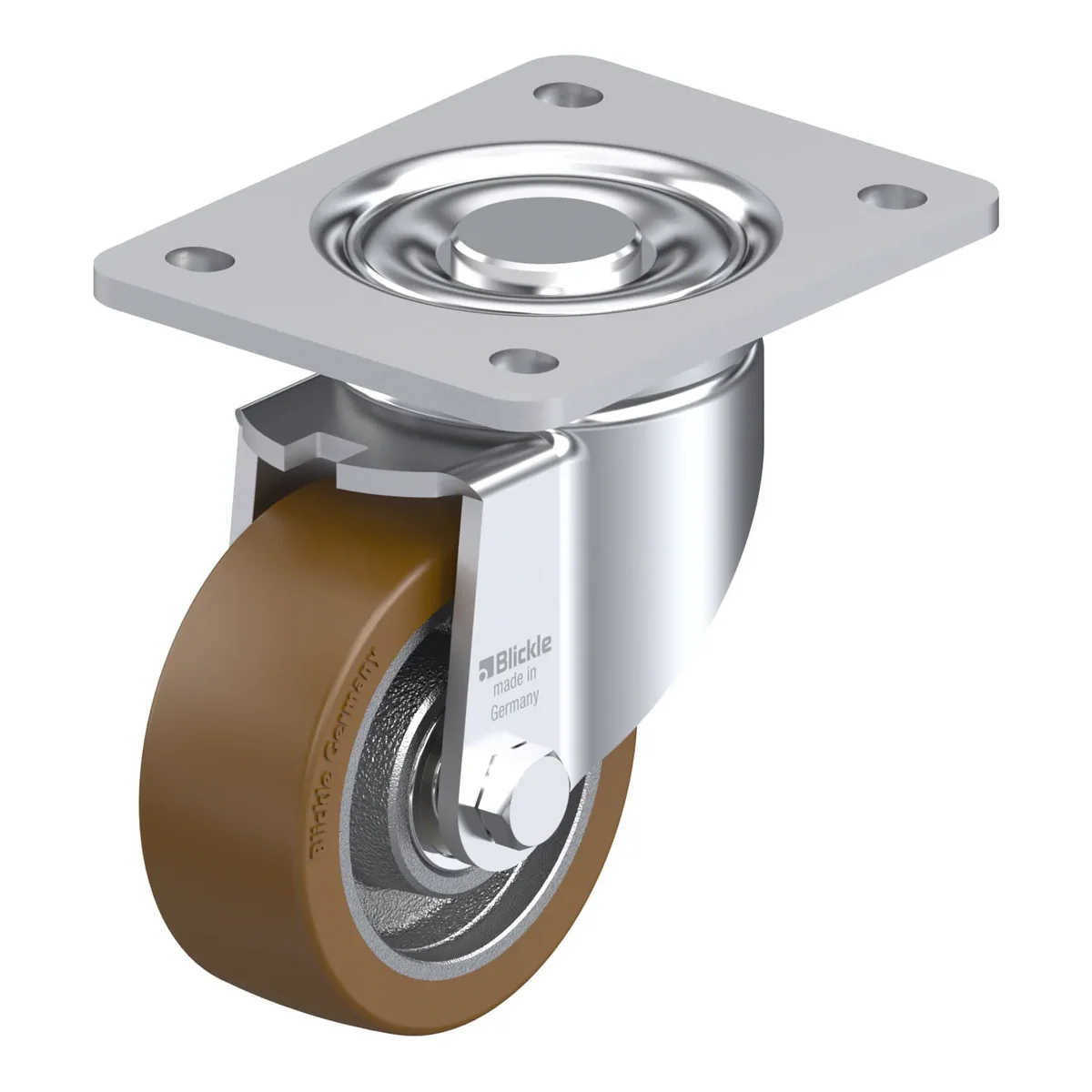

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-GB 100K-3 je okretni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 450 kg pri 4 km/h (statički 1125 kg). Ukupna visina je 140 mm. Cijena je 198.89 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, heavy duty wheel, with Blickle Besthane® polyurethane tread, with cast iron wheel centre
198.89 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 742205 |
|---|---|
| EAN | 4047526020422 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 450 kg |
| Statička nosivost | 1125 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
