Šifra 940251

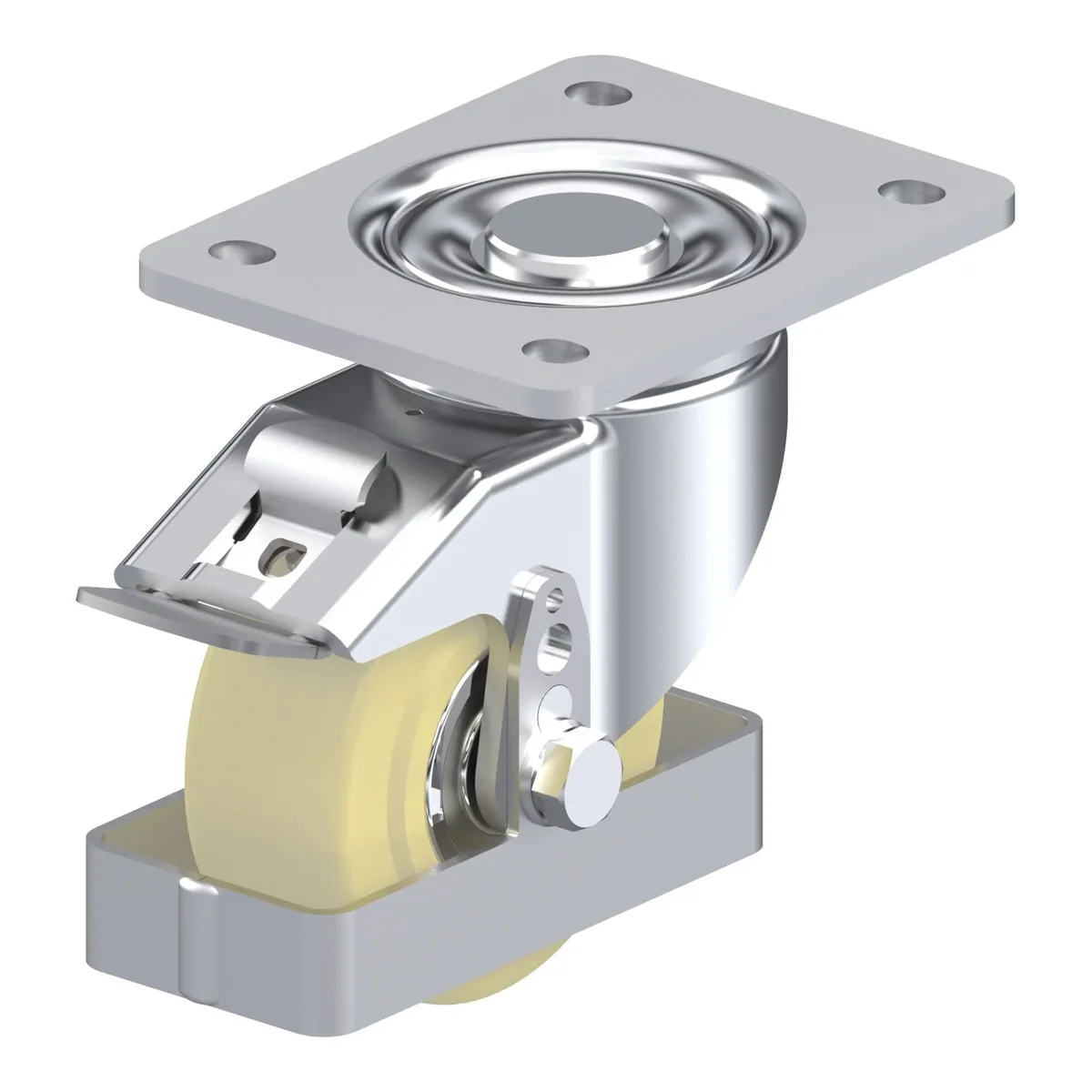

LH-GSPO 100K-3-FI-FS
Okretni točkić, Blickle, Made in Germany
Ukratko: LH-GSPO 100K-3-FI-FS je okretni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 700 kg pri 4 km/h (statički 1750 kg). Ukupna visina je 140 mm. Cijena je 280.86 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', steel foot guard, heavy duty wheel made of compressed cast nylon
280.86 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 940251 |
|---|---|
| EAN | 4047526410674 |
| Promjer točka | 100 mm |
| Širina točka | 40 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 700 kg |
| Statička nosivost | 1750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
