Šifra 629212

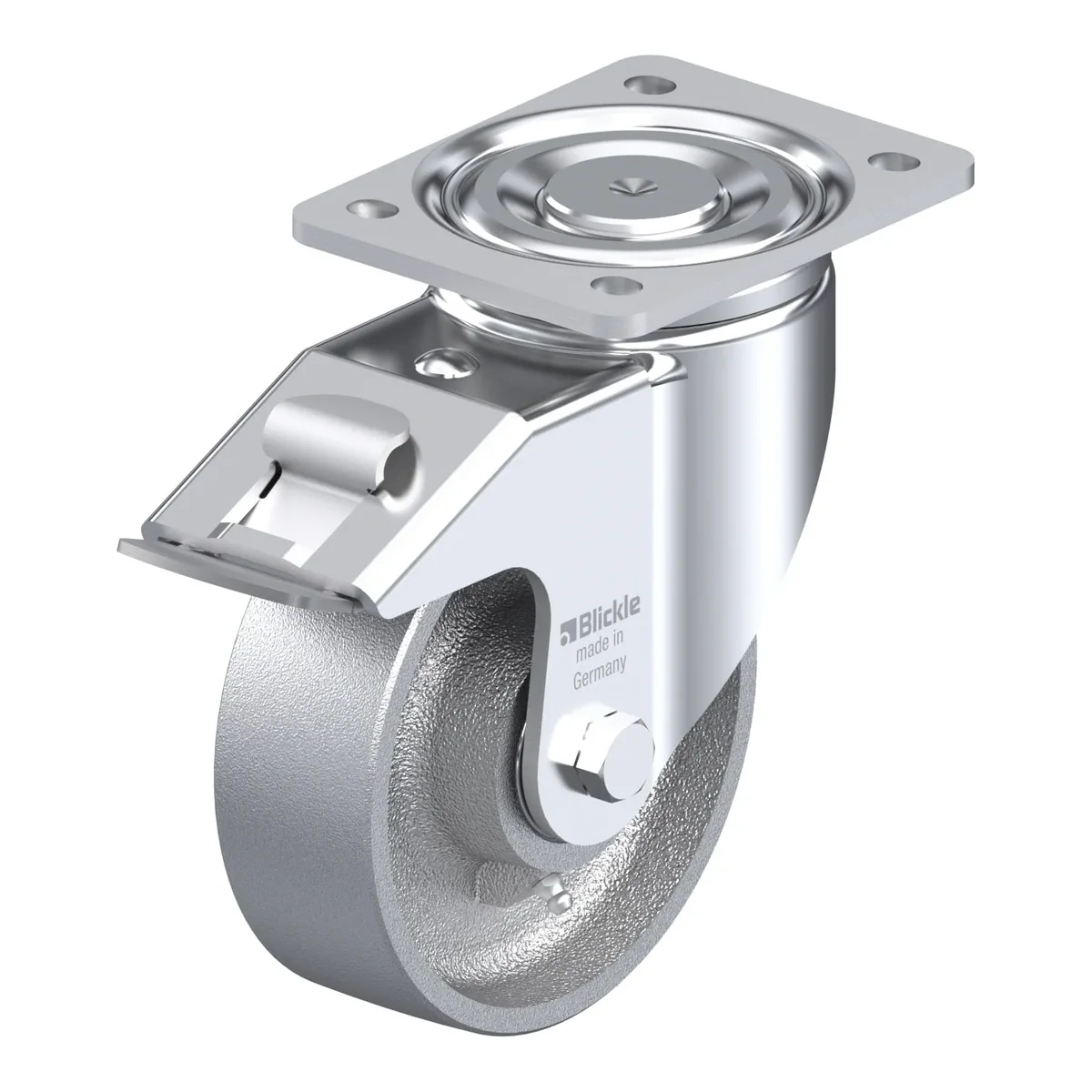

LH-G 150K-FI
Okretni točkić, Blickle, Made in Germany
Ukratko: LH-G 150K-FI je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 197 mm. Cijena je 250.18 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', cast iron wheel
250.18 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 629212 |
|---|---|
| EAN | 4047526629212 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 197 mm |
| Nosivost pri 4 km/h | 900 kg |
| Statička nosivost | 2250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 56 mm |
| ESD zaštita | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- to be lubricated according to the application temperature
