Šifra 623835

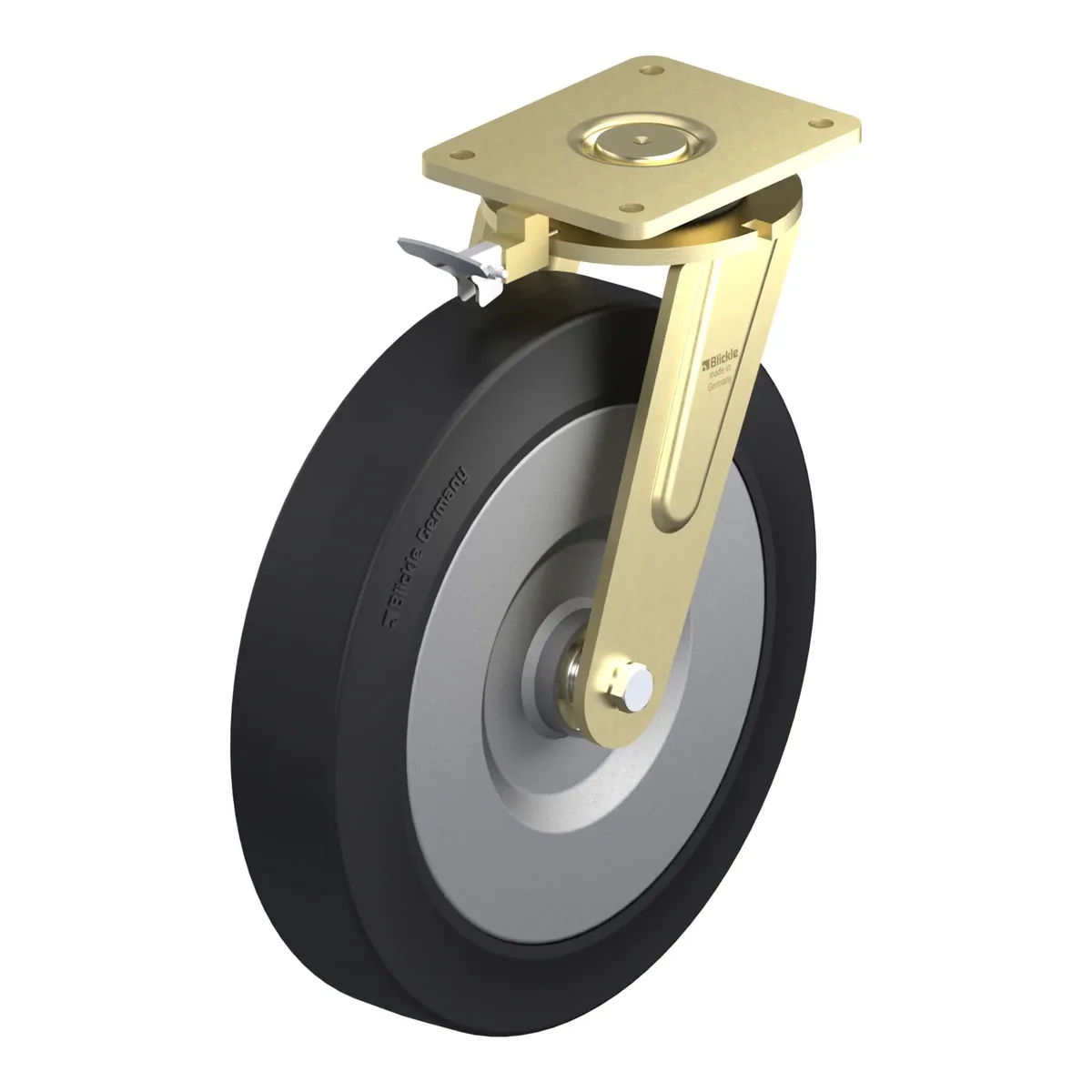

LS-SE 415K-Z-RI4
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-SE 415K-Z-RI4 je okretni točkić Blickle promjera 415 mm, širine 90 mm, nosivosti 1150 kg pri 4 km/h (statički 2875 kg). Ukupna visina je 478 mm. Cijena je 1724.50 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with directional lock, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with steel wheel centre
1724.50 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 623835 |
|---|---|
| EAN | 4047526623838 |
| Promjer točka | 415 mm |
| Širina točka | 90 mm |
| Ukupna visina | 478 mm |
| Nosivost pri 4 km/h | 1150 kg |
| Statička nosivost | 2875 kg |
| Veličina ploče | 200 x 160 mm |
| Razmak rupa | 165.0 x 130.0 mm |
| Offset | 100 mm |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: thick-walled pressed steel, with tubular steel hub, lacquered, colour anthracite
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
