MHC Tradetočkići.ba

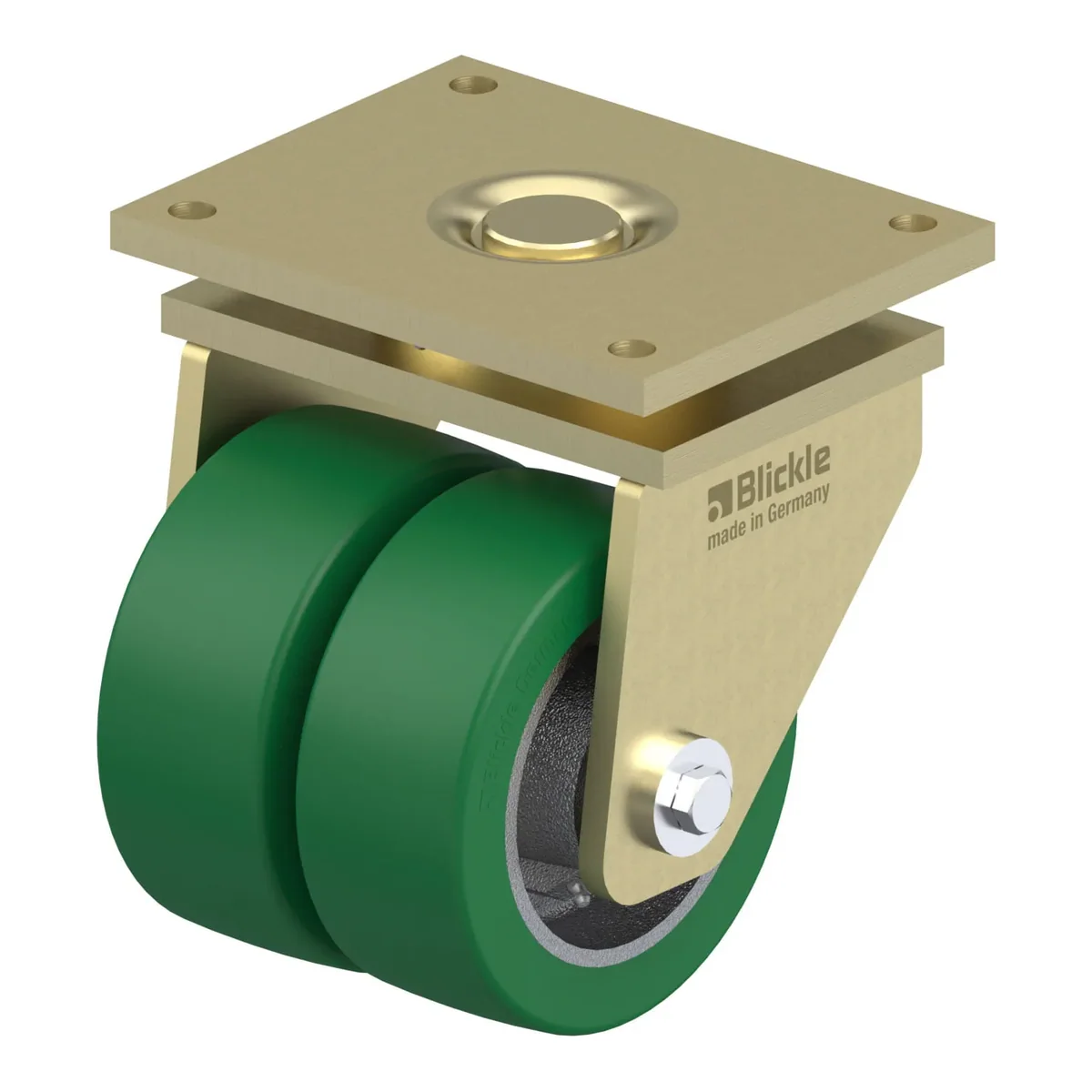

LSD-GST 202K – dvostruki točkić Blickle

Šifra 755023

LSD-GST 202K

Dvostruki točkić, Blickle, Made in Germany

Ukratko: LSD-GST 202K je dvostruki točkić Blickle promjera 200 mm, širine 80 mm, nosivosti 2400 kg pri 4 km/h (statički 6000 kg). Ukupna visina je 280 mm. Cijena je 1846.18 KM s PDV-om.

Heavy duty welded steel twin wheel swivel castor, heavy duty swivel head, heavy duty wheel, with Blickle Softhane® polyurethane tread, with cast iron wheel centre

1846.18 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755023
EAN4047526115340
Promjer točka200 mm
Širina točka80 mm
Ukupna visina280 mm
Nosivost pri 4 km/h2400 kg
Statička nosivost6000 kg
Veličina ploče255 x 200 mm
Razmak rupa220.0 x 170.0 mm
Offset60 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
  • wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 160 mm, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
