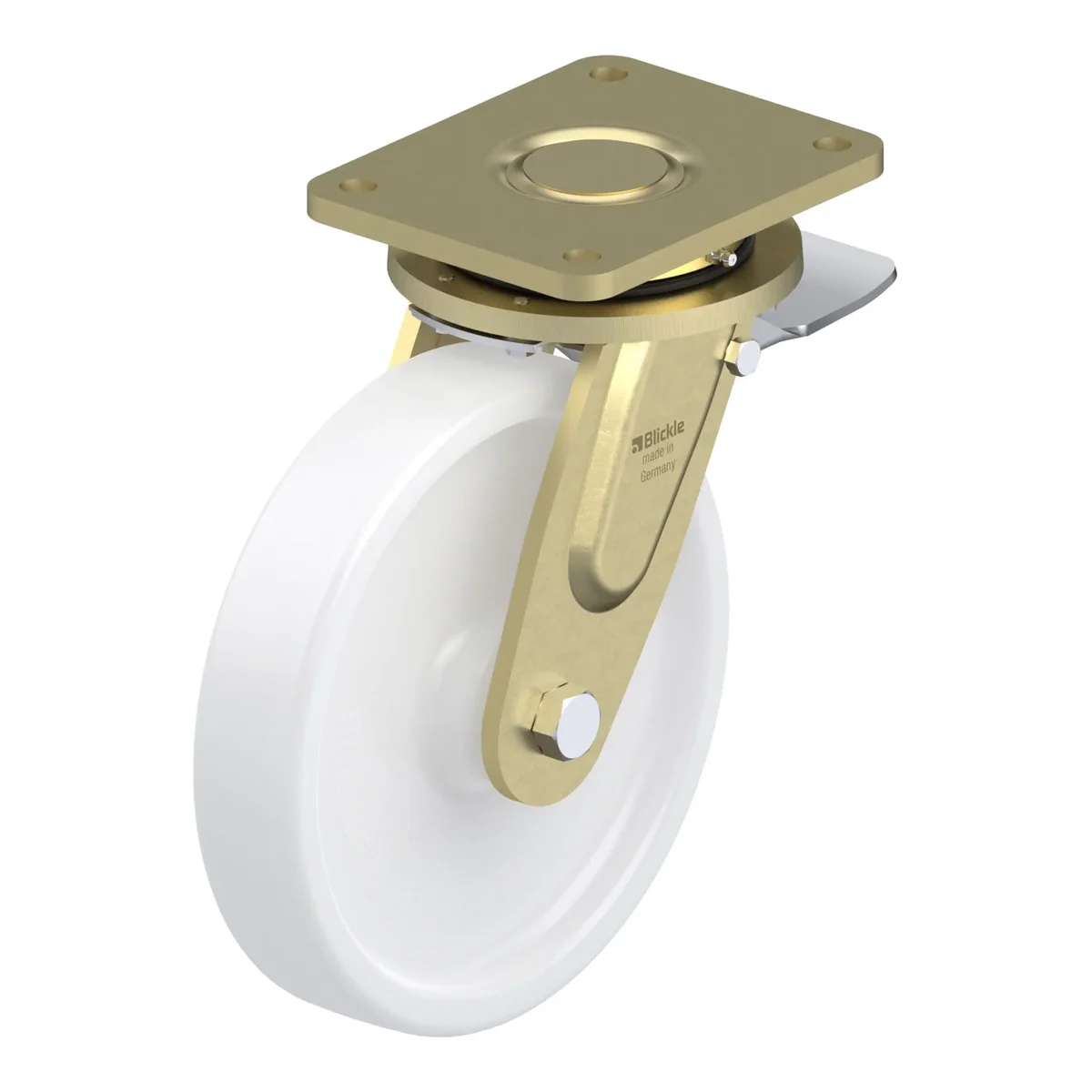

LS-SPO 251G-ST – okretni točkić Blickle

Šifra 755062

LS-SPO 251G-ST

Okretni točkić, Blickle, Made in Germany

Ukratko: LS-SPO 251G-ST je okretni točkić Blickle promjera 250 mm, širine 50 mm, nosivosti 1500 kg pri 4 km/h (statički 3750 kg). Ukupna visina je 305 mm. Cijena je 662.45 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', nylon heavy duty wheel

662.45 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla755062
EAN4047526115555
Promjer točka250 mm
Širina točka50 mm
Ukupna visina305 mm
Nosivost pri 4 km/h1500 kg
Statička nosivost3750 kg
Veličina ploče175 x 140 mm
Razmak rupa140.0 x 110.0 mm
Offset75 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
