Šifra 934977

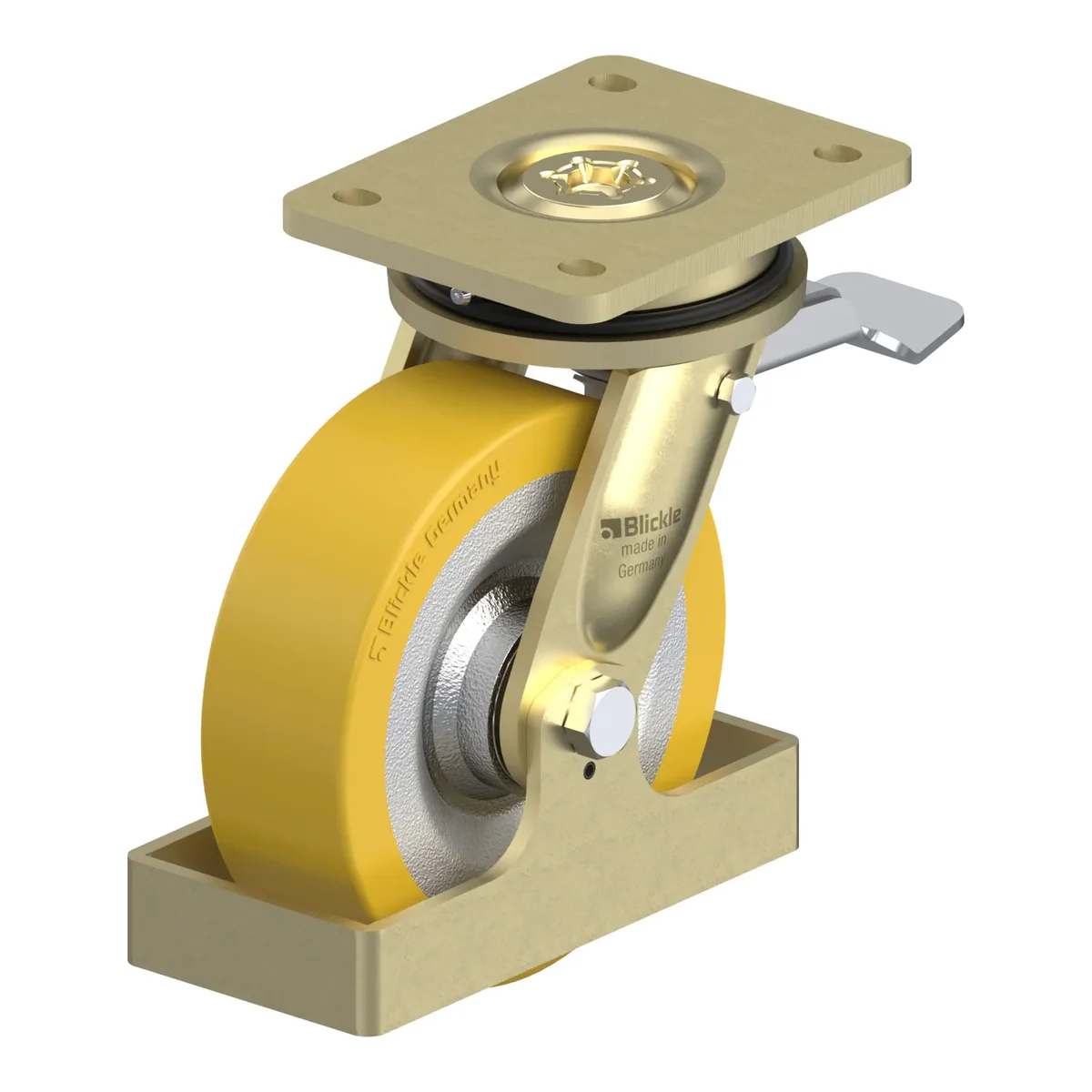

LS-SETH 160K-ST-FS
Okretni točkić, Blickle, Made in Germany
Ukratko: LS-SETH 160K-ST-FS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 700 kg pri 4 km/h (statički 1750 kg). Ukupna visina je 205 mm. Cijena je 567.78 KM s PDV-om.
Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', steel foot guard, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with welded steel wheel centre
567.78 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 934977 |
|---|---|
| EAN | 4047526384524 |
| Promjer točka | 160 mm |
| Širina točka | 50 mm |
| Ukupna visina | 205 mm |
| Nosivost pri 4 km/h | 700 kg |
| Statička nosivost | 1750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: thick-walled pressed steel, triple welded, with tubular steel hub, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
