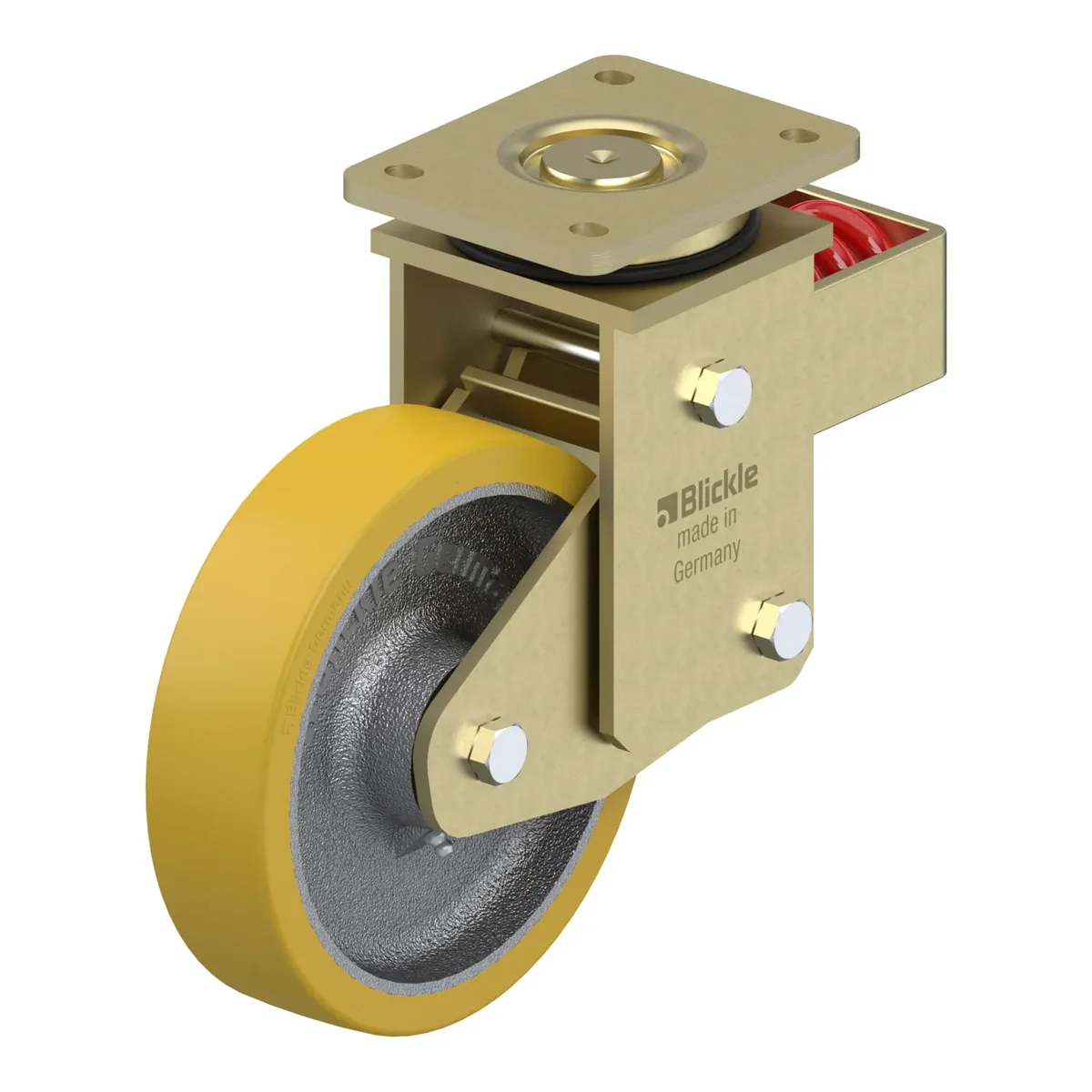

LSFN-GTH 200K – okretni točkić Blickle

Šifra 282616

LSFN-GTH 200K

Okretni točkić, Blickle, Made in Germany

Ukratko: LSFN-GTH 200K je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 1000 kg pri 4 km/h (statički 2500 kg). Ukupna visina je 265 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 585.43 KM s PDV-om.

Heavy duty welded steel swivel castor, with steel spring, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

585.43 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla282616
EAN4047526282615
Promjer točka200 mm
Širina točka50 mm
Ukupna visina265 mm
Nosivost pri 4 km/h1000 kg
Statička nosivost2500 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset100 mm
Tvrdoća gazišta92 Shore A
Radna temperatura-20 °C do 70 °C
Težina11.6 kg
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • robust spring structure with steel spring
  • maintenance-free spring mechanism
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: rugged grey cast iron
  • with grease nipple, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
