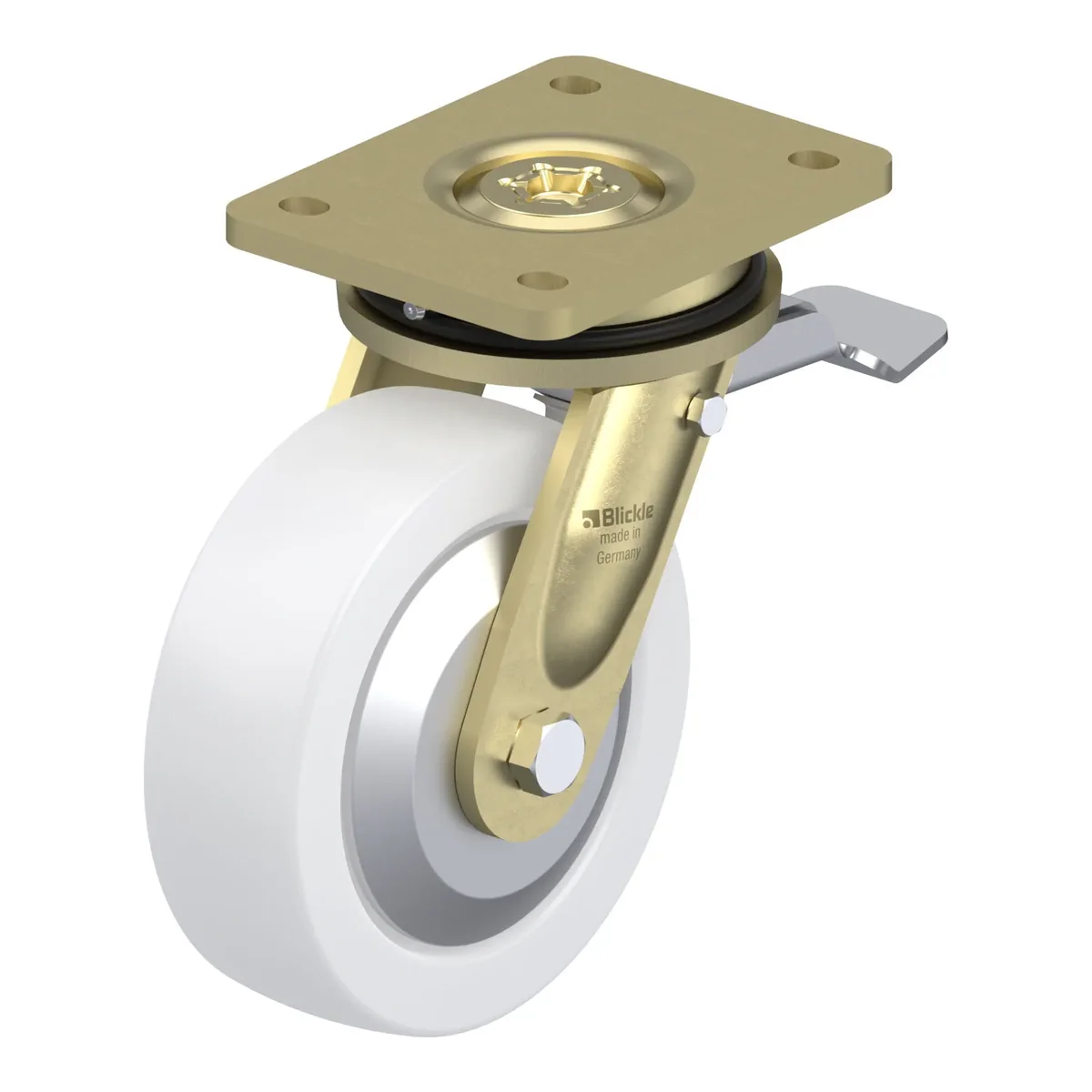

LS-SPO 160K-ST-FA – okretni točkić Blickle

Šifra 853035

LS-SPO 160K-ST-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LS-SPO 160K-ST-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 850 kg pri 4 km/h (statički 2125 kg). Ukupna visina je 205 mm. Cijena je 390.18 KM s PDV-om.

Heavy duty welded steel swivel castor, heavy duty swivel head, with brake system 'stop-top', nylon heavy duty wheel, with steel thread guard

390.18 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853035
EAN4047526200244
Promjer točka160 mm
Širina točka50 mm
Ukupna visina205 mm
Nosivost pri 4 km/h850 kg
Statička nosivost2125 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset55 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • grease nipple

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
