Šifra 682344
LH-POTH 100K-3-FI

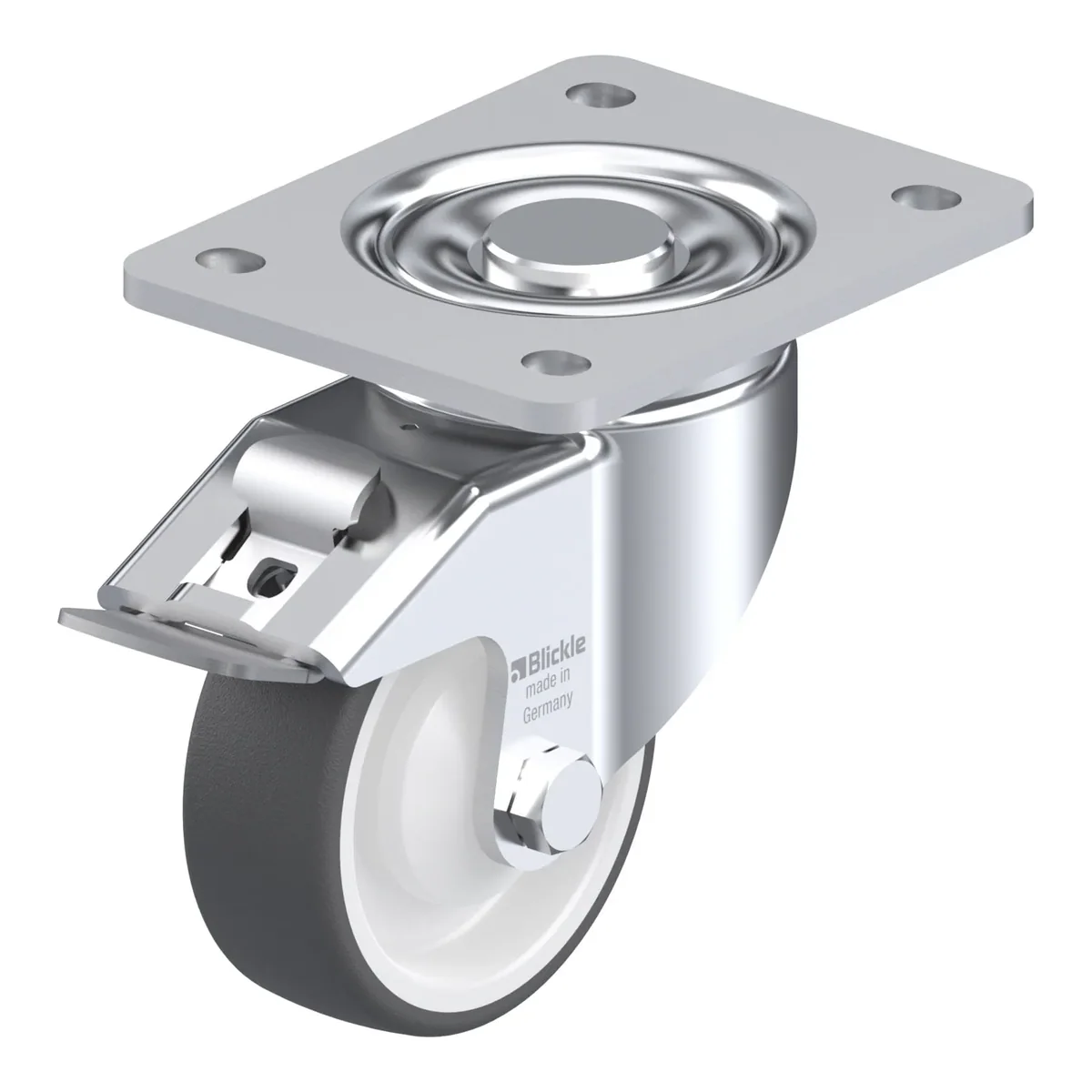

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-POTH 100K-3-FI je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 140 mm. Cijena je 169.61 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre
169.61 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 682344 |
|---|---|
| EAN | 4047526682347 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 140 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
