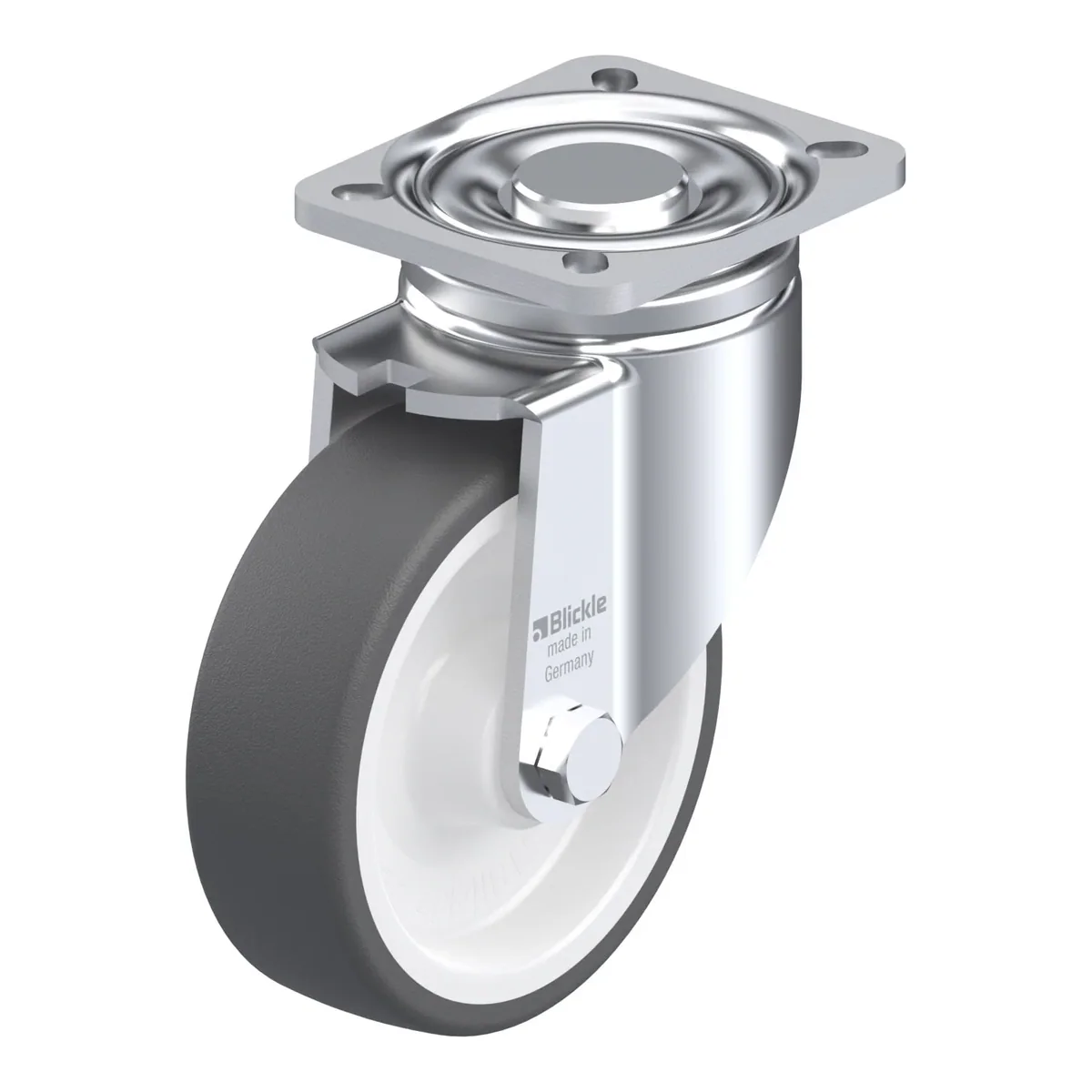

LH-POTH 125R-1 – okretni točkić Blickle

Šifra 233486

LH-POTH 125R-1

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-POTH 125R-1 je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 165 mm. Cijena je 113.93 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre

113.93 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla233486
EAN4047526233488
Promjer točka125 mm
Širina točka40 mm
Ukupna visina165 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
