Šifra 939076
LH-POTH 150R-FA-FS

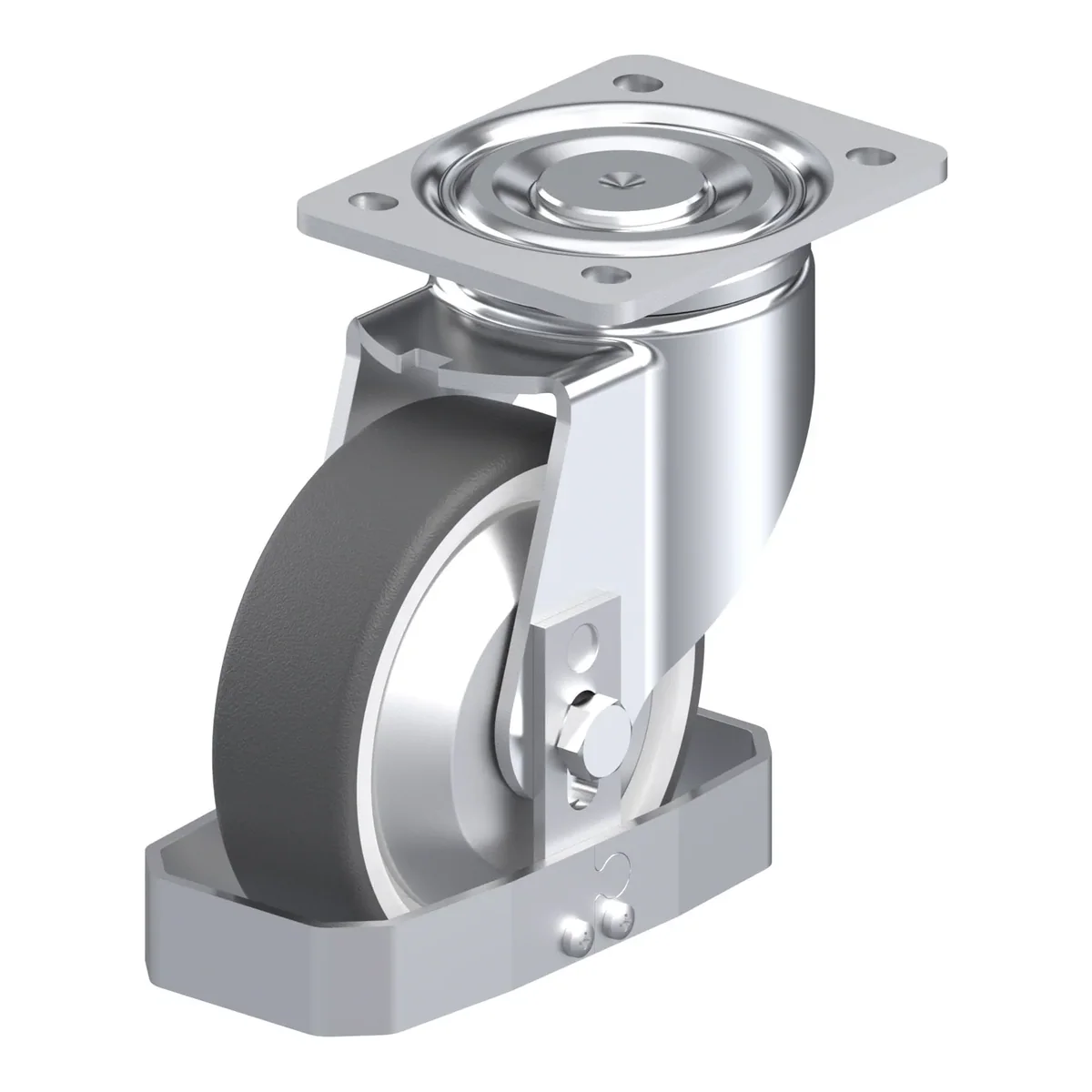

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-POTH 150R-FA-FS je okretni točkić Blickle promjera 150 mm, širine 45 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 197 mm. Cijena je 258.61 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, steel foot guard, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with steel thread guard
258.61 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 939076 |
|---|---|
| EAN | 4047526400736 |
| Promjer točka | 150 mm |
| Širina točka | 45 mm |
| Ukupna visina | 197 mm |
| Nosivost pri 4 km/h | 500 kg |
| Statička nosivost | 1250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
