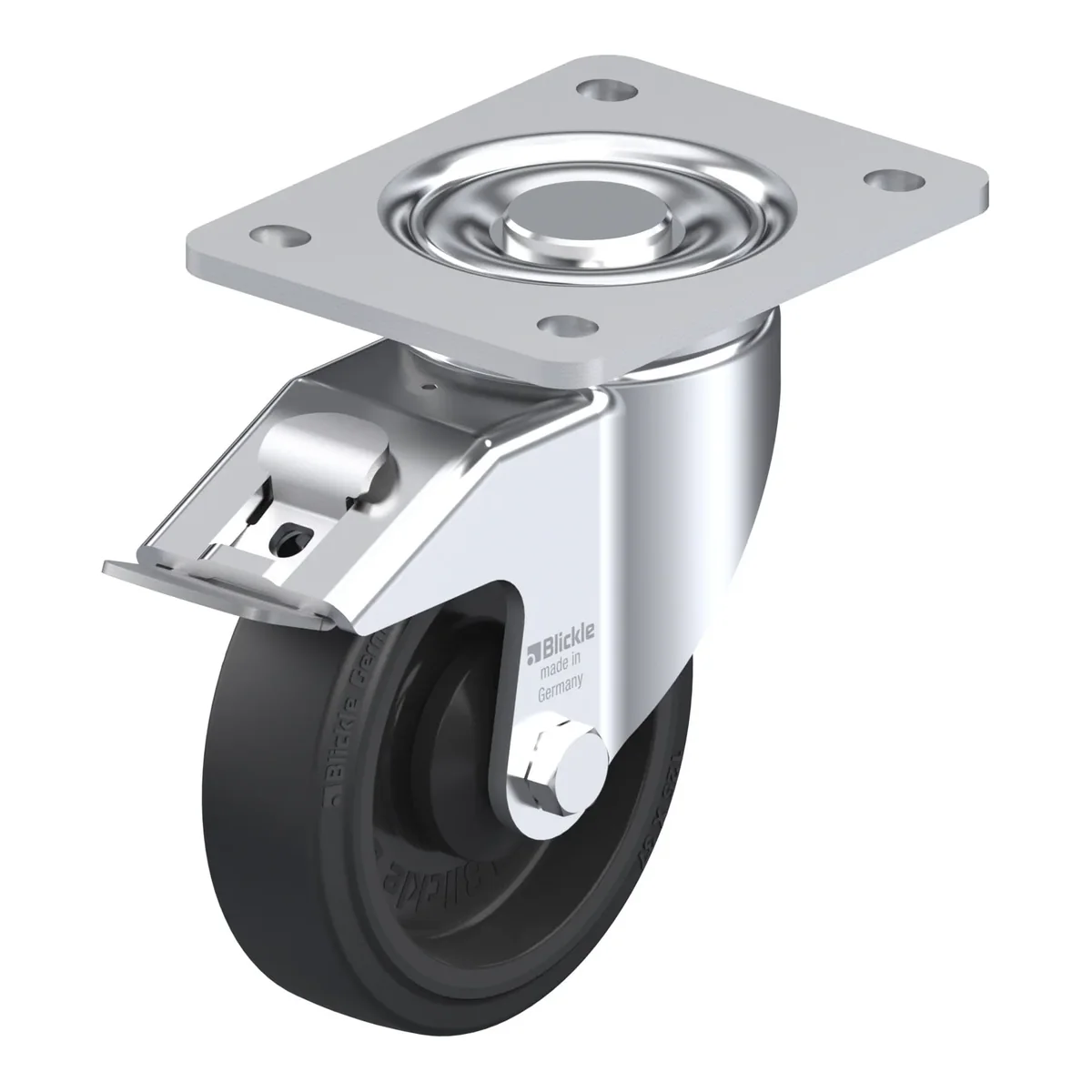

LH-POEV 125K-3-FI – okretni točkić Blickle

Šifra 600403

LH-POEV 125K-3-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LH-POEV 125K-3-FI je okretni točkić Blickle promjera 125 mm, širine 37 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 165 mm. Radi na temperaturi od -20 °C do 80 °C. Cijena je 180.51 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre

180.51 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla600403
EAN4047526600402
Promjer točka125 mm
Širina točka37 mm
Ukupna visina165 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset45 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-20 °C do 80 °C
Težina2.6 kg

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
