LHF-ALTH 200K-AS-CO – okretni točkić Blickle

Šifra 937368

LHF-ALTH 200K-AS-CO

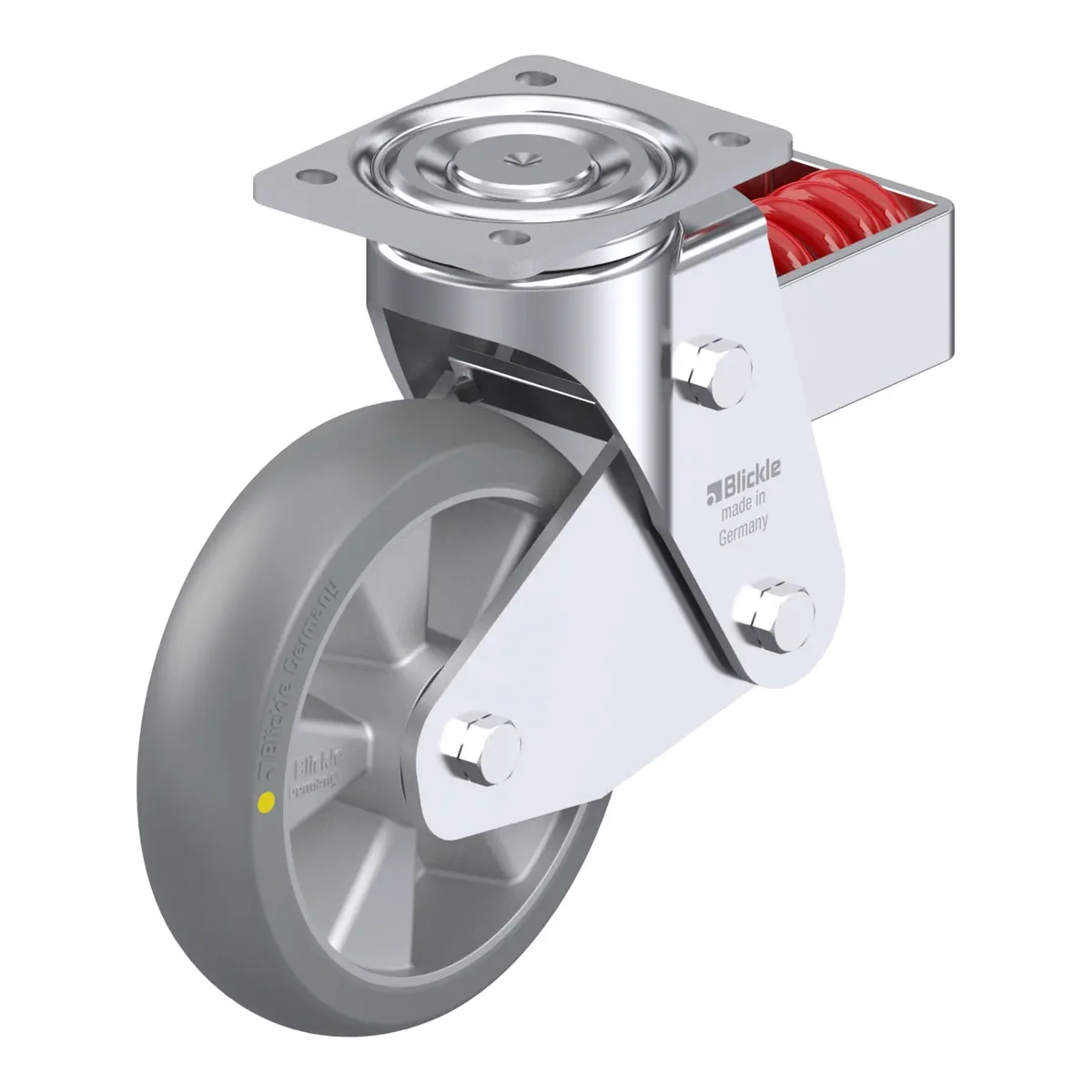

Okretni točkić, Blickle, Made in Germany

Ukratko: LHF-ALTH 200K-AS-CO je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 800 kg pri 4 km/h (statički 2000 kg). Ukupna visina je 265 mm. Cijena je 600.72 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with steel spring, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, with extra crowned running tread, antist atic

600.72 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla937368
EAN4047526392338
Promjer točka200 mm
Širina točka50 mm
Ukupna visina265 mm
Nosivost pri 4 km/h800 kg
Statička nosivost2000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset65 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • robust spring structure with steel spring
  • maintenance-free spring mechanism
  • double ball bearing in the swivel head
  • bolted and secured central kingpin, extremely strong
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
