Šifra 754586
LHD-GSPO 60K
Dvostruki točkić, Blickle, Made in Germany
Ukratko: LHD-GSPO 60K je dvostruki točkić Blickle promjera 60 mm, širine 32 mm, nosivosti 630 kg pri 4 km/h (statički 1575 kg). Ukupna visina je 92 mm. Cijena je 173.97 KM s PDV-om.

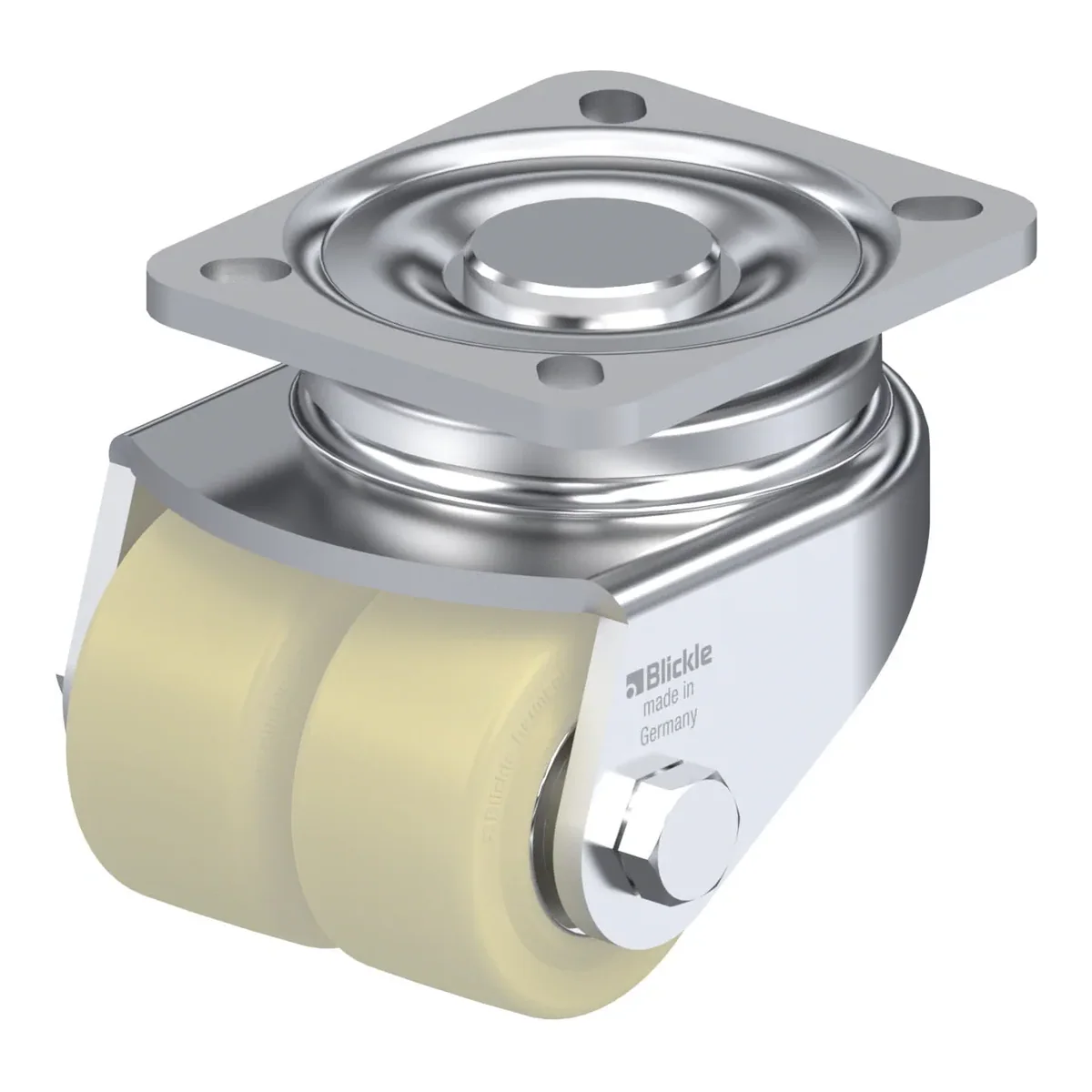

Pressed steel twin wheel swivel castor, heavy duty design, with top plate fitting, heavy duty wheel made of compressed cast nylon
173.97 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 754586 |
|---|---|
| EAN | 4047526114329 |
| Promjer točka | 60 mm |
| Širina točka | 32 mm |
| Ukupna visina | 92 mm |
| Nosivost pri 4 km/h | 630 kg |
| Statička nosivost | 1575 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free (fixed bracket: solid welded steel construction)
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
