Šifra 940122
LH-SPO 160K-FA-FS

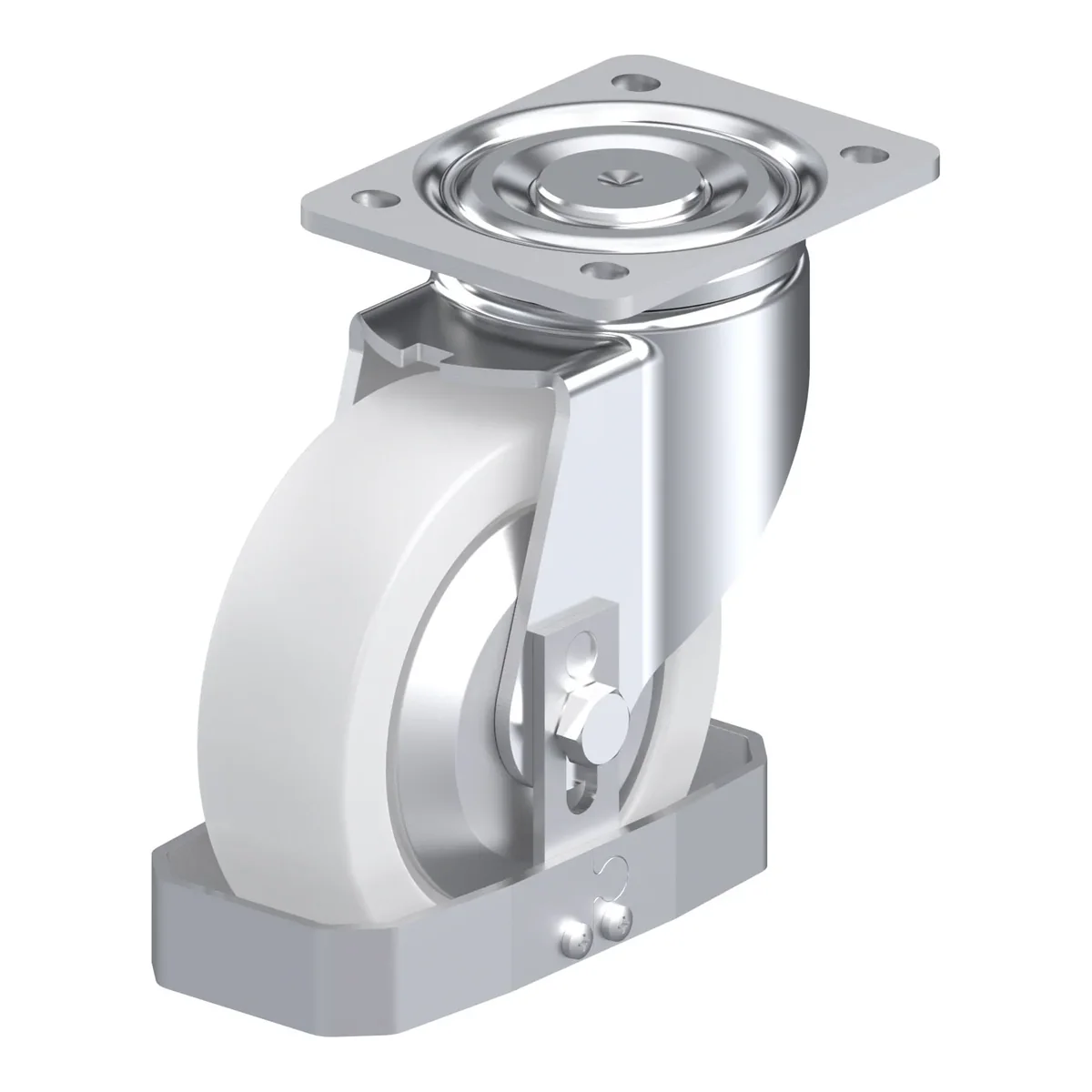

Okretni točkić, Blickle, Made in Germany
Ukratko: LH-SPO 160K-FA-FS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 850 kg pri 4 km/h (statički 2125 kg). Ukupna visina je 202 mm. Cijena je 307.53 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, steel foot guard, nylon heavy duty wheel, with steel thread guard
307.53 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 940122 |
|---|---|
| EAN | 4047526409265 |
| Promjer točka | 160 mm |
| Širina točka | 50 mm |
| Ukupna visina | 202 mm |
| Nosivost pri 4 km/h | 850 kg |
| Statička nosivost | 2125 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 65 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
