MHC Tradetočkići.ba

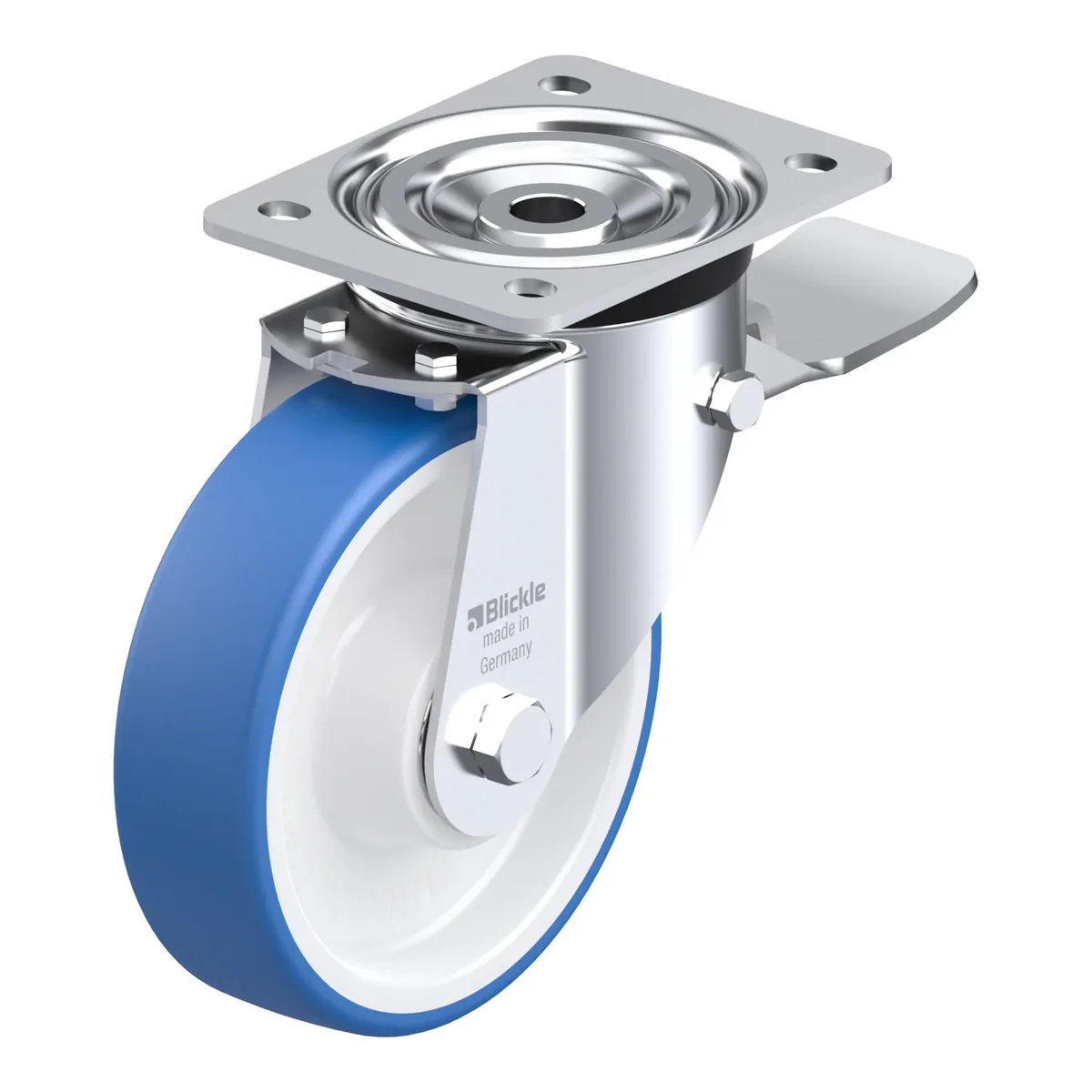

L-POTHS 160K-ST – okretni točkić Blickle

Šifra 936253

L-POTHS 160K-ST

Okretni točkić, Blickle, Made in Germany

Ukratko: L-POTHS 160K-ST je okretni točkić Blickle promjera 160 mm, širine 45 mm, nosivosti 400 kg pri 4 km/h (statički 1000 kg). Ukupna visina je 195 mm. Cijena je 196.61 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-top', wheel, with soft thermoplastic polyurethane tread, with heavy duty nylon wheel centre

196.61 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936253
EAN4047526386269
Promjer točka160 mm
Širina točka45 mm
Ukupna visina195 mm
Nosivost pri 4 km/h400 kg
Statička nosivost1000 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset60 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
