MHC Tradetočkići.ba

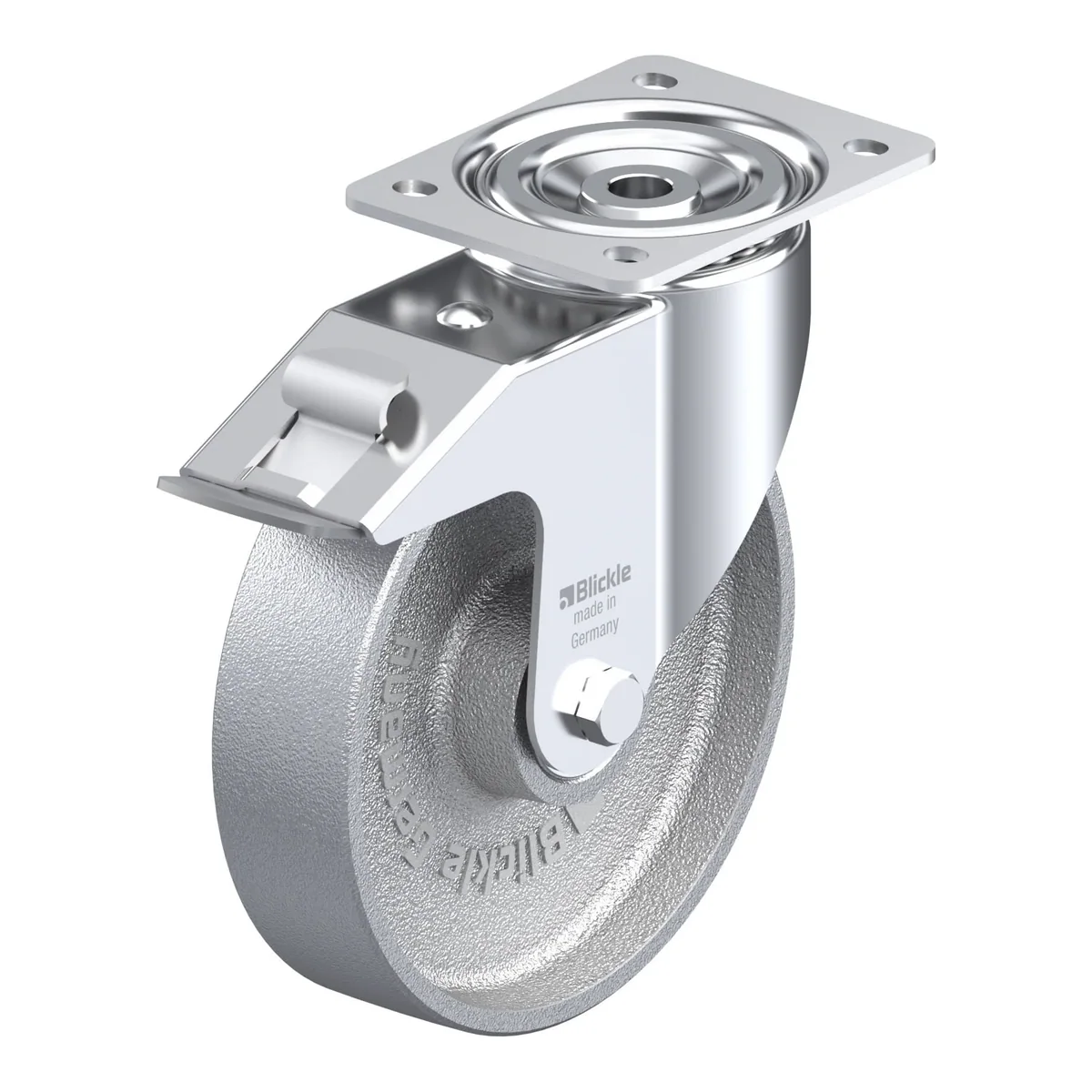

LI-G 200IK-FI – okretni točkić Blickle

Šifra 763576

LI-G 200IK-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LI-G 200IK-FI je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 235 mm. Cijena je 310.67 KM s PDV-om.

Pressed steel swivel castor, with top plate fitting, heat-resistant, with brake system 'stop-fix', cast iron wheel

310.67 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla763576
EAN4047526121952
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset58 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • highly heat-resistant grease

Točak

  • rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • consider the surface pressure on sensitive floors due to high point loads
  • to be lubricated according to the application temperature
