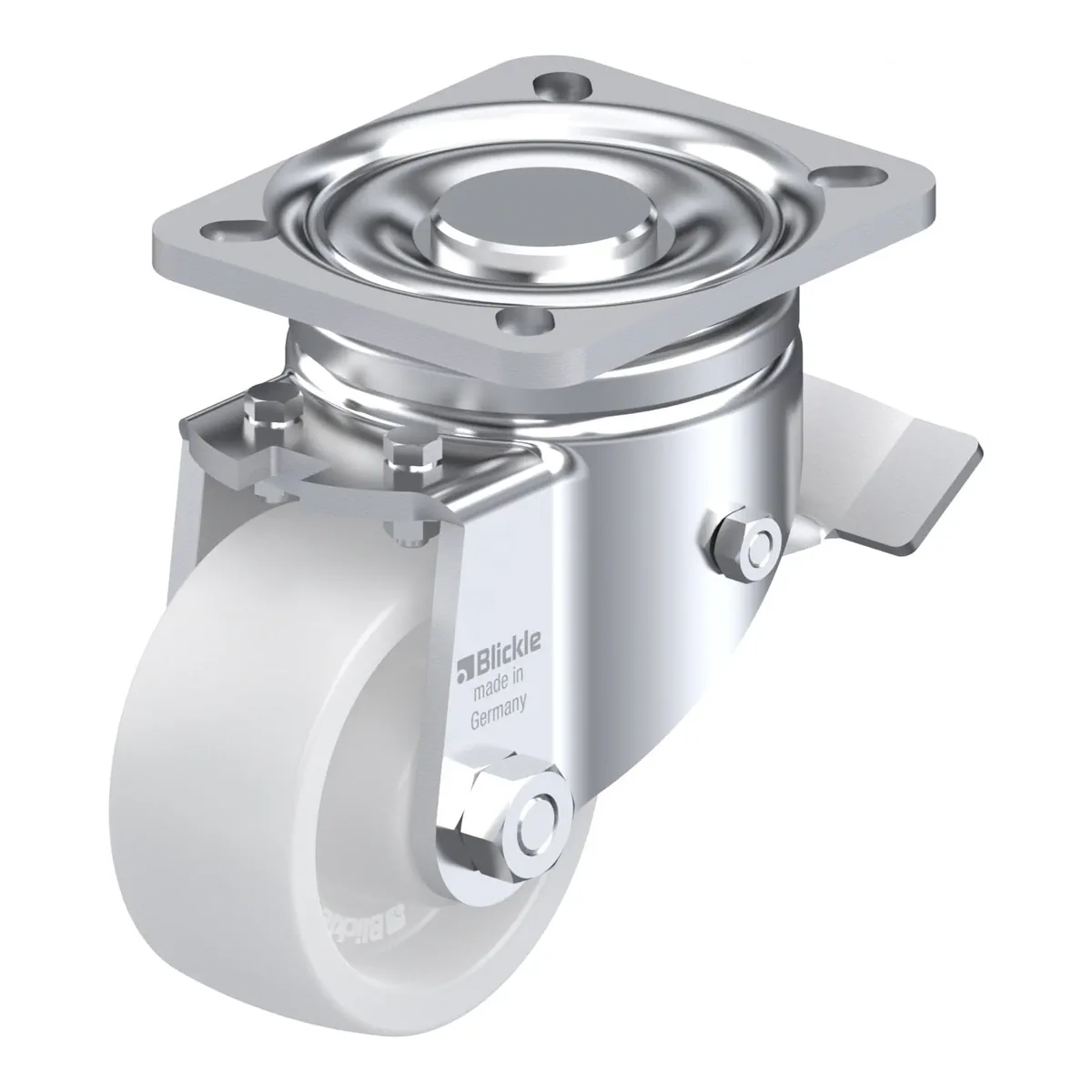

Šifra 852893
LH-SPO 80G-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: LH-SPO 80G-ST je okretni točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 120 mm. Cijena je 140.29 KM s PDV-om.
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-top', nylon heavy duty wheel
140.29 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 852893 |
|---|---|
| EAN | 4047526198596 |
| Promjer točka | 80 mm |
| Širina točka | 37 mm |
| Ukupna visina | 120 mm |
| Nosivost pri 4 km/h | 350 kg |
| Statička nosivost | 875 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
