Šifra 755759
LI-PHN 150HK
Okretni točkić, Blickle, Made in Germany

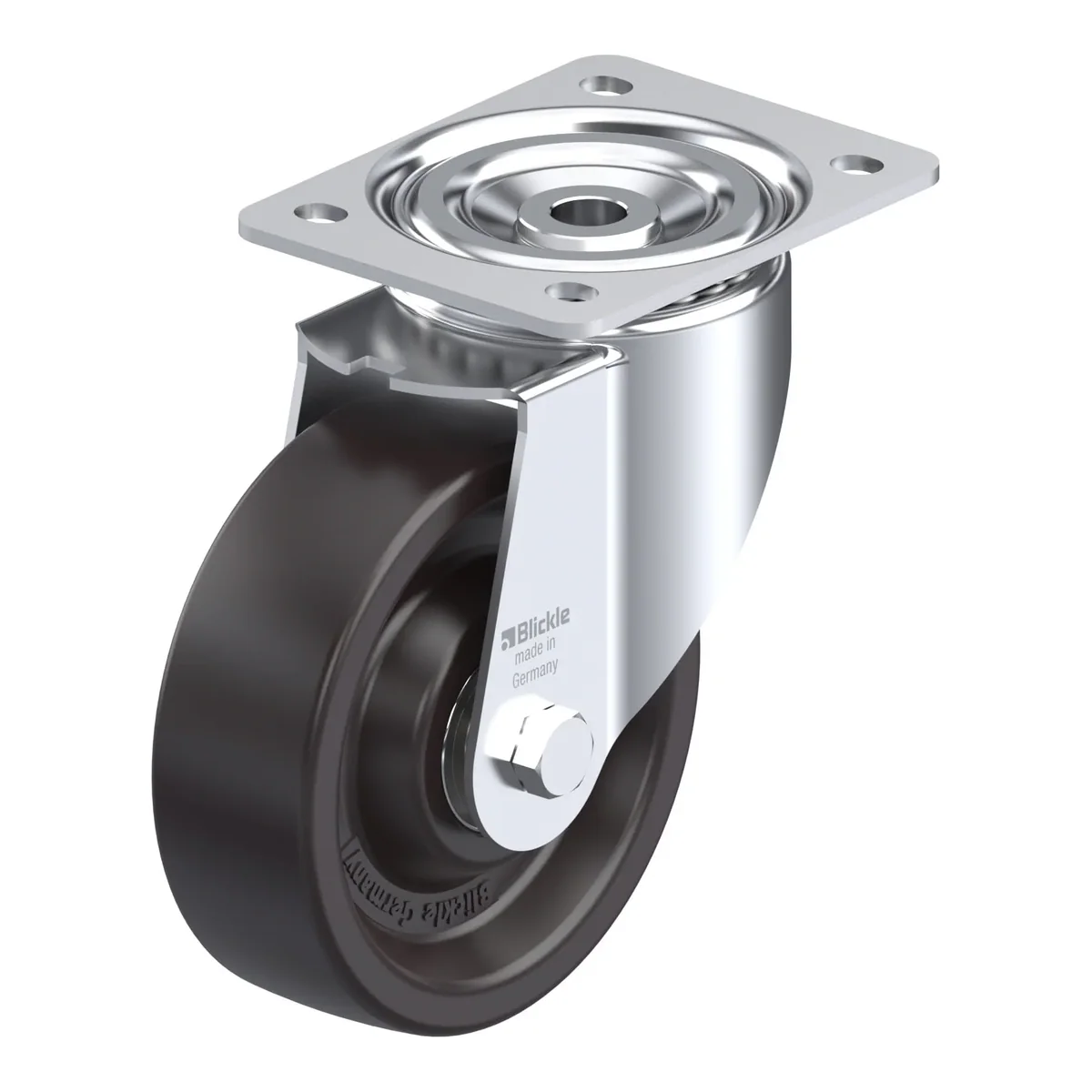

Ukratko: LI-PHN 150HK je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 190 mm. Cijena je 260.51 KM s PDV-om.
Pressed steel swivel castor, with top plate fitting, heat-resistant, Blickle TempLine® Classic thermoset wheel, heat-resistant
260.51 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 755759 |
|---|---|
| EAN | 4047526101213 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 190 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 60 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Točak
- phenolic resin, hardness 90 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
