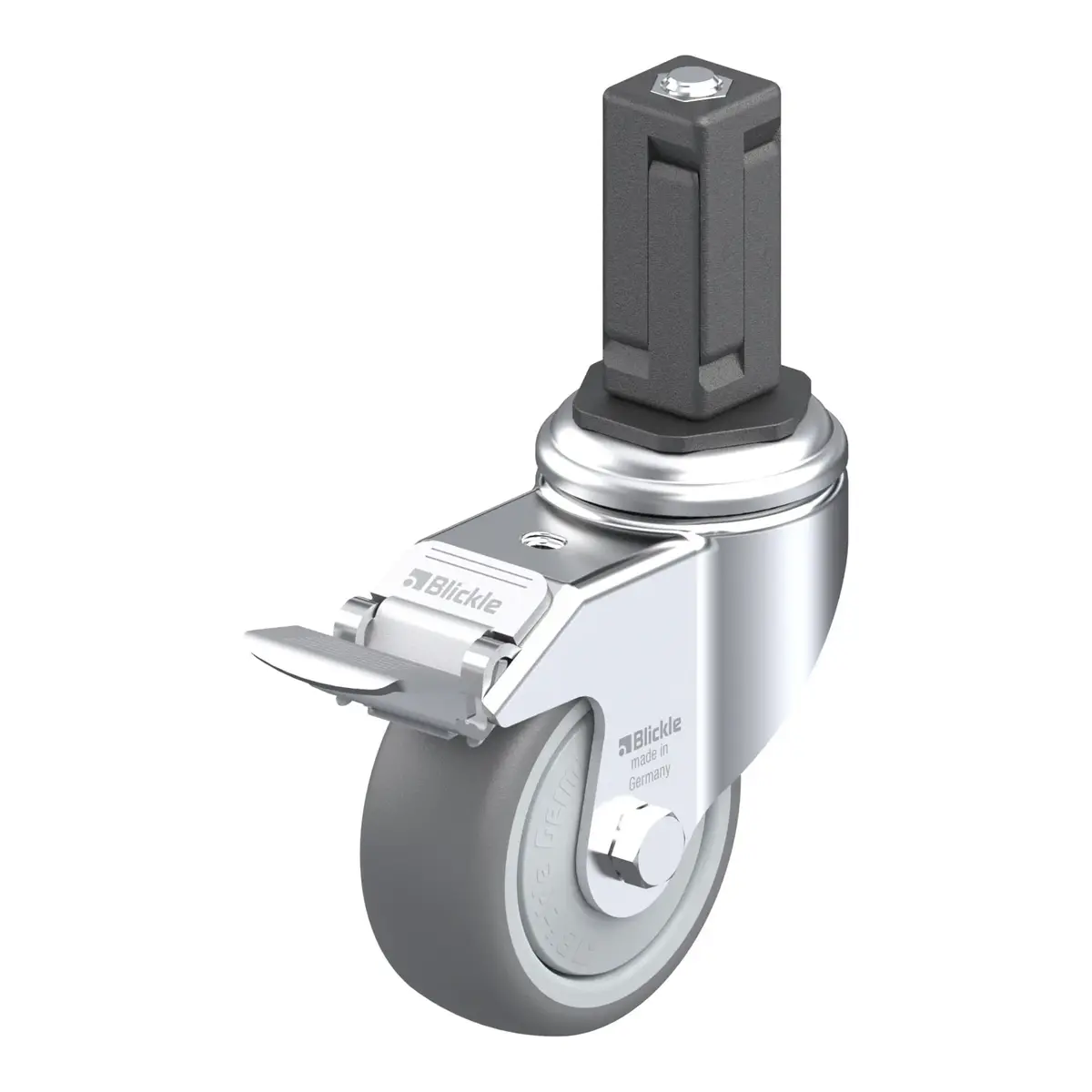

LKRA-TPA 80KF-11-FI-EV14 – okretni točkić Blickle

Šifra 846719

LKRA-TPA 80KF-11-FI-EV14

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-TPA 80KF-11-FI-EV14 je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 111 mm. Cijena je 61.53 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with synthetic expander, with brake system 'stop-fix', wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large

61.53 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla846719
EAN4047526104085
Promjer točka80 mm
Širina točka32 mm
Ukupna visina111 mm
Nosivost pri 4 km/h100 kg
Statička nosivost250 kg
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
