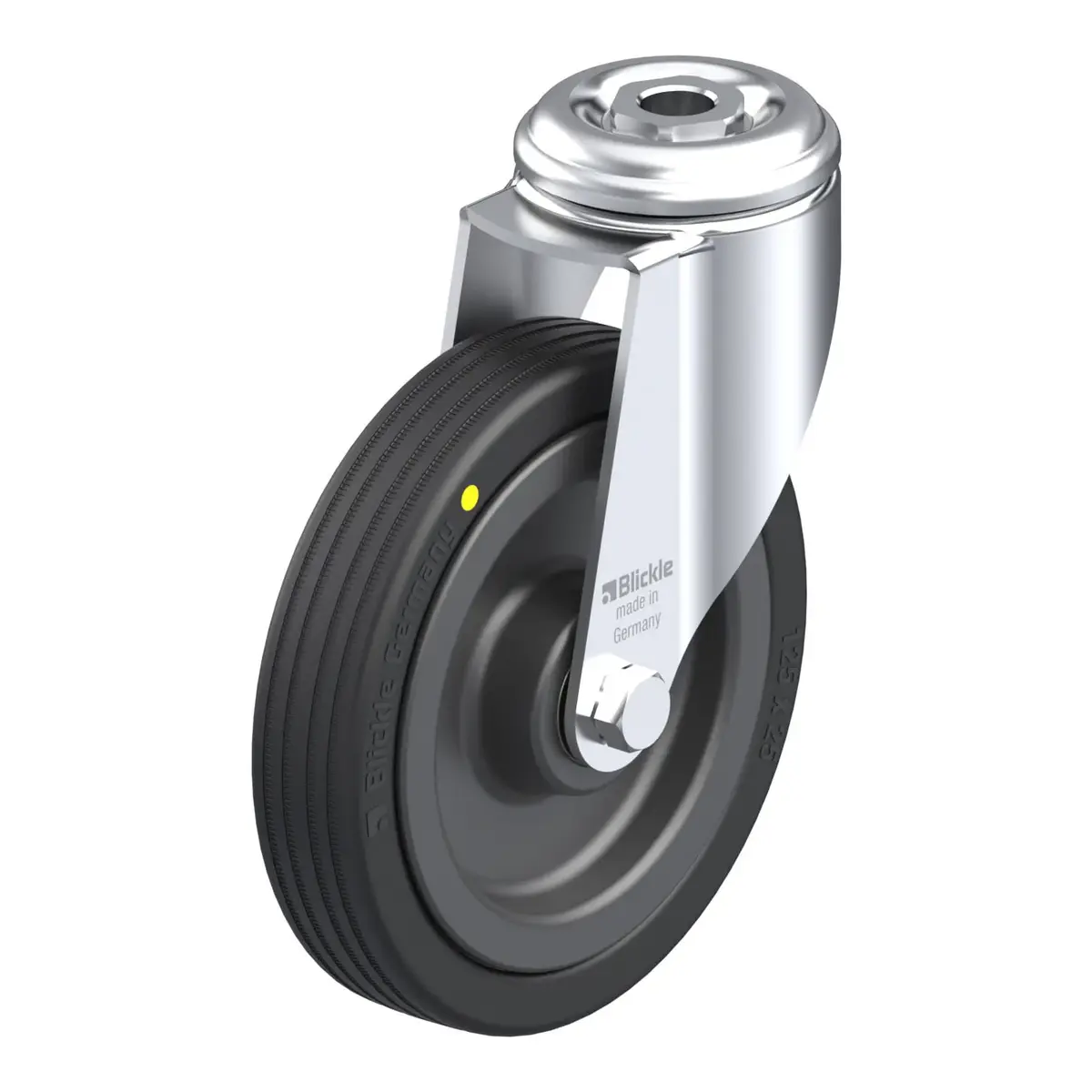

LKRA-VPA 125K-EL – okretni točkić Blickle

Šifra 332197

LKRA-VPA 125K-EL

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-VPA 125K-EL je okretni točkić Blickle promjera 125 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 158 mm. Cijena je 49.55 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, wheel, with solid rubber tyres, with synthetic rim, electrically conductive

49.55 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla332197
EAN4047526332198
Promjer točka125 mm
Širina točka25 mm
Ukupna visina158 mm
Nosivost pri 4 km/h75 kg
Statička nosivost187.5 kg
Offset40 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
