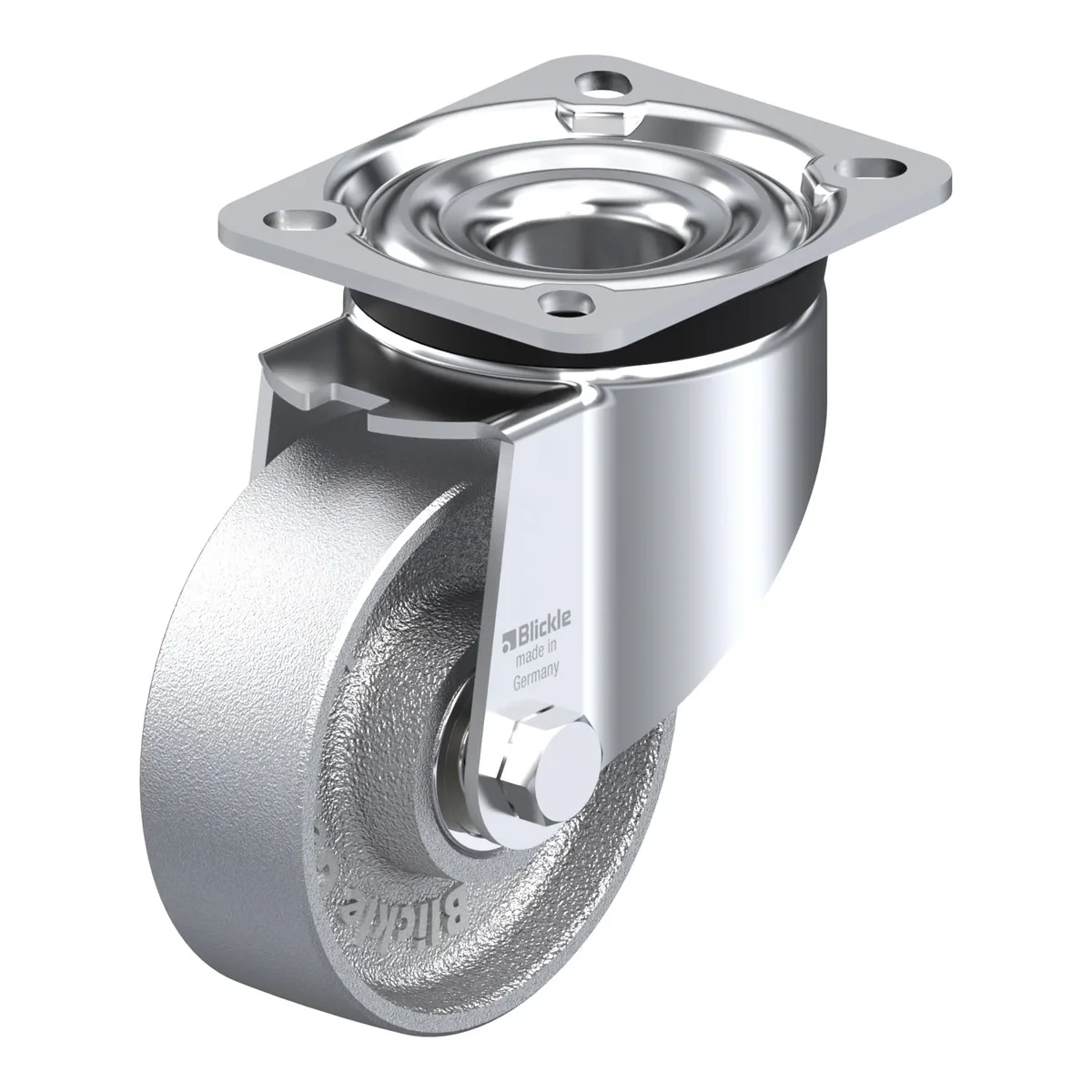

LK-G 100K-1 – okretni točkić Blickle

Šifra 754784

LK-G 100K-1

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-G 100K-1 je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 130 mm. Cijena je 77.93 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, cast iron wheel

77.93 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754784
EAN4047526081874
Promjer točka100 mm
Širina točka35 mm
Ukupna visina130 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset45 mm
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver

Dodatne karakteristike

  • chemical resistance to many aggressive substances
  • consider the surface pressure on sensitive floors due to high point loads
  • to be lubricated according to the application temperature
