Šifra 937337

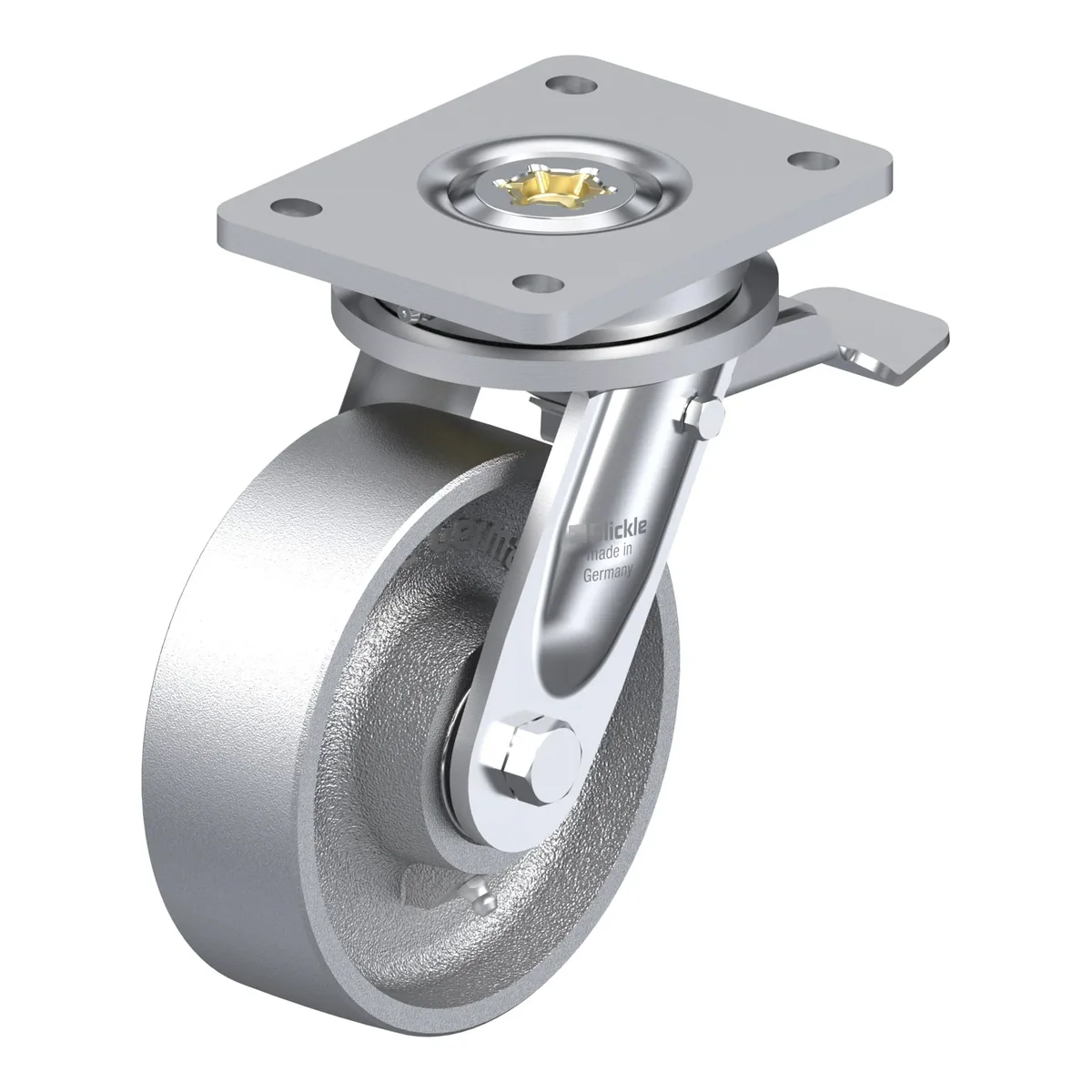

LIO-G 150IK-ST
Okretni točkić, Blickle, Made in Germany
Ukratko: LIO-G 150IK-ST je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 200 mm. Cijena je 510.38 KM s PDV-om.
Heavy duty welded steel swivel castor, heat-resistant, with brake system 'stop-top', cast iron wheel
510.38 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 937337 |
|---|---|
| EAN | 4047526392017 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 200 mm |
| Nosivost pri 4 km/h | 900 kg |
| Statička nosivost | 2250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
| ESD zaštita | da |
Nosač
- solid welded steel construction
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats
- bolted and secured welded central kingpin, extremely strong
- swivel head seal with labyrinth design
- grease nipple
- highly heat-resistant grease
Točak
- rugged grey cast iron, hardness 180–220 HB, grease nipple, lacquered, colour silver
Dodatne karakteristike
- chemical resistance to many aggressive substances
- consider the surface pressure on sensitive floors due to high point loads
- to be lubricated according to the application temperature
