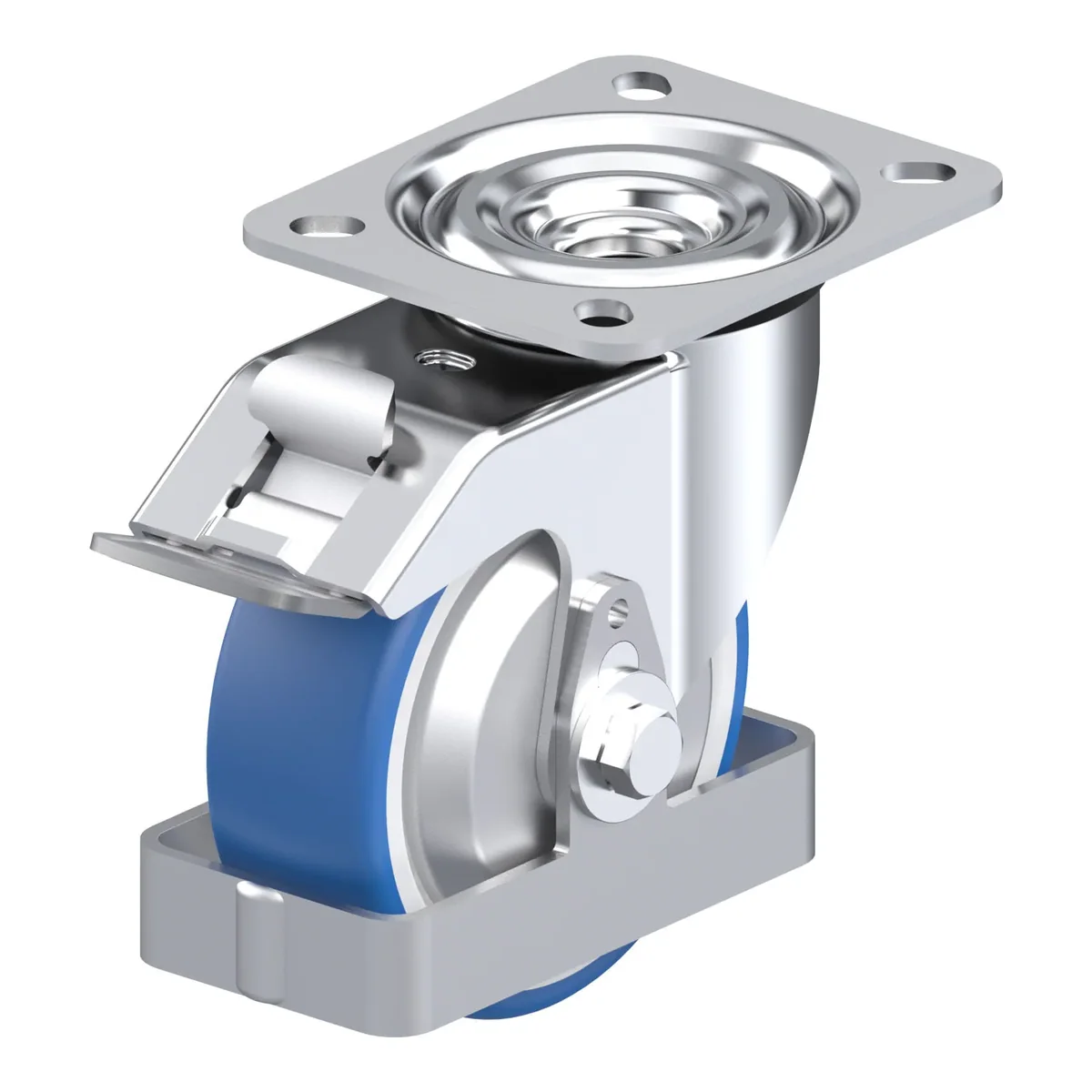

L-POTHS 100XKA-FI-FA-FS – okretni točkić Blickle

Šifra 948047

L-POTHS 100XKA-FI-FA-FS

Okretni točkić, Blickle, Made in Germany

Ukratko: L-POTHS 100XKA-FI-FA-FS je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 125 mm. Cijena je 156.12 KM s PDV-om.

Pressed steel swivel castor, medium duty design, with top plate fitting, with brake system 'stop-fix', steel foot guard, wheel, with soft thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small, with stee lthread guard

156.12 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla948047
EAN4047526420444
Promjer točka100 mm
Širina točka35 mm
Ukupna visina125 mm
Nosivost pri 4 km/h200 kg
Statička nosivost500 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset36 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 150 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour natural white

Dodatne karakteristike

  • with synthetic thread guard, small
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
