Šifra 947941
LK-POTHS 100XKA-3-ST-FA

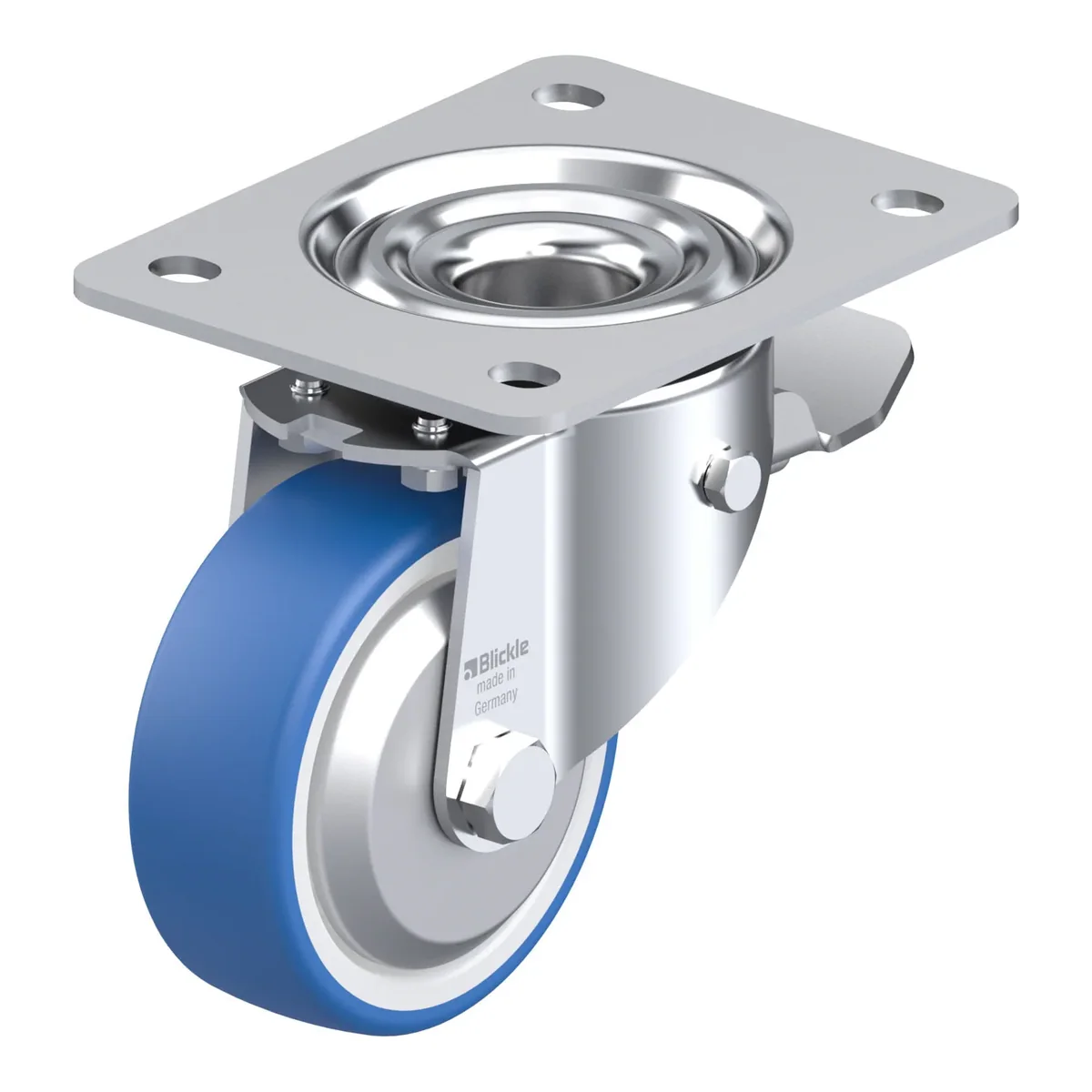

Okretni točkić, Blickle, Made in Germany
Ukratko: LK-POTHS 100XKA-3-ST-FA je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 130 mm. Cijena je 135.21 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, with brake system 'stop-top', wheel, with soft thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small, with stee l thread guard
135.21 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 947941 |
|---|---|
| EAN | 4047526419080 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 47 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- with synthetic thread guard, small
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
