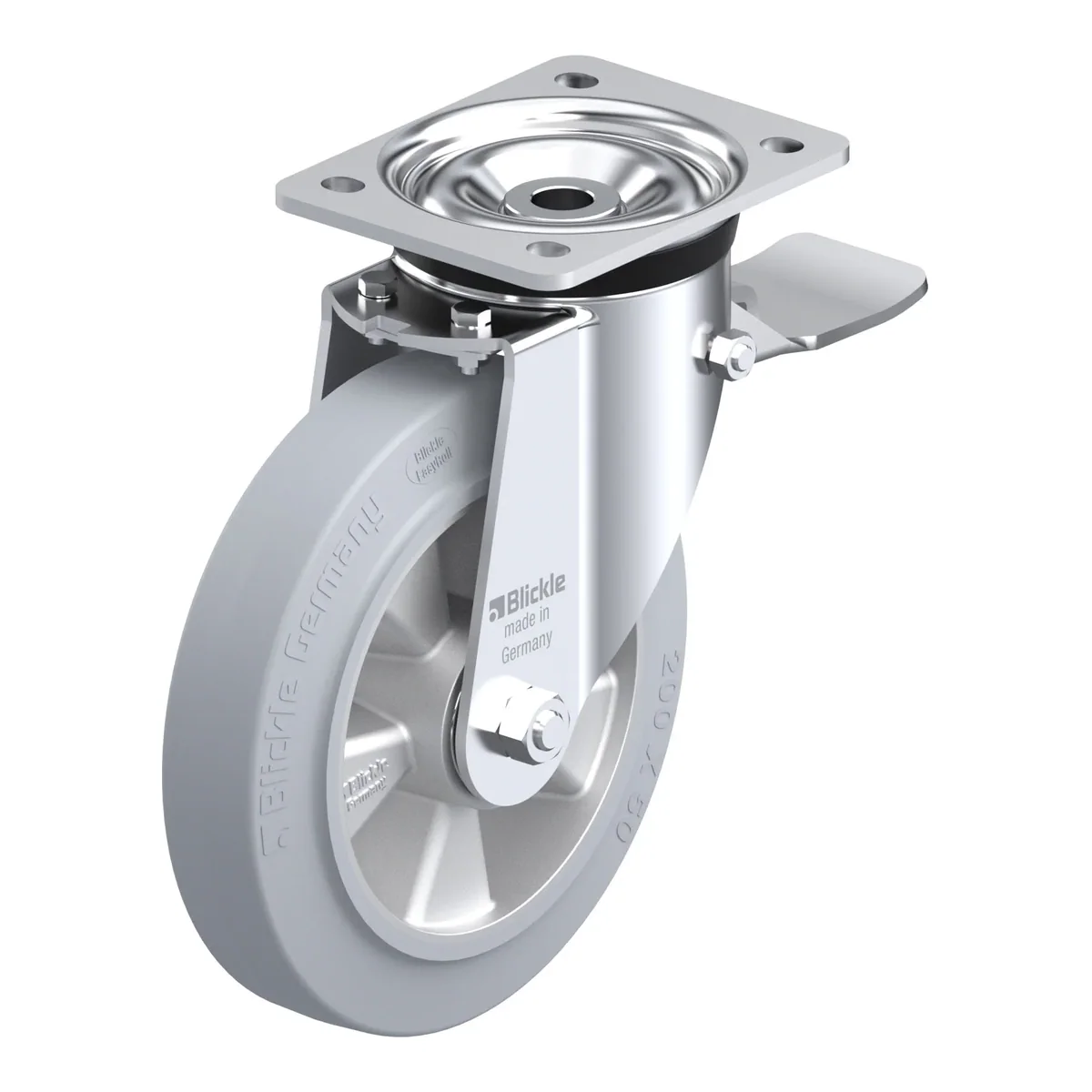

LK-ALEV 200K-ST-SG – okretni točkić Blickle

Šifra 323840

LK-ALEV 200K-ST-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-ALEV 200K-ST-SG je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 245 mm. Cijena je 235.98 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-top', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with aluminium wheel centre, non-marking, grey

235.98 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla323840
EAN4047526323844
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h500 kg
Statička nosivost1250 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset62 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
  • wheel centre: die-cast aluminium

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
