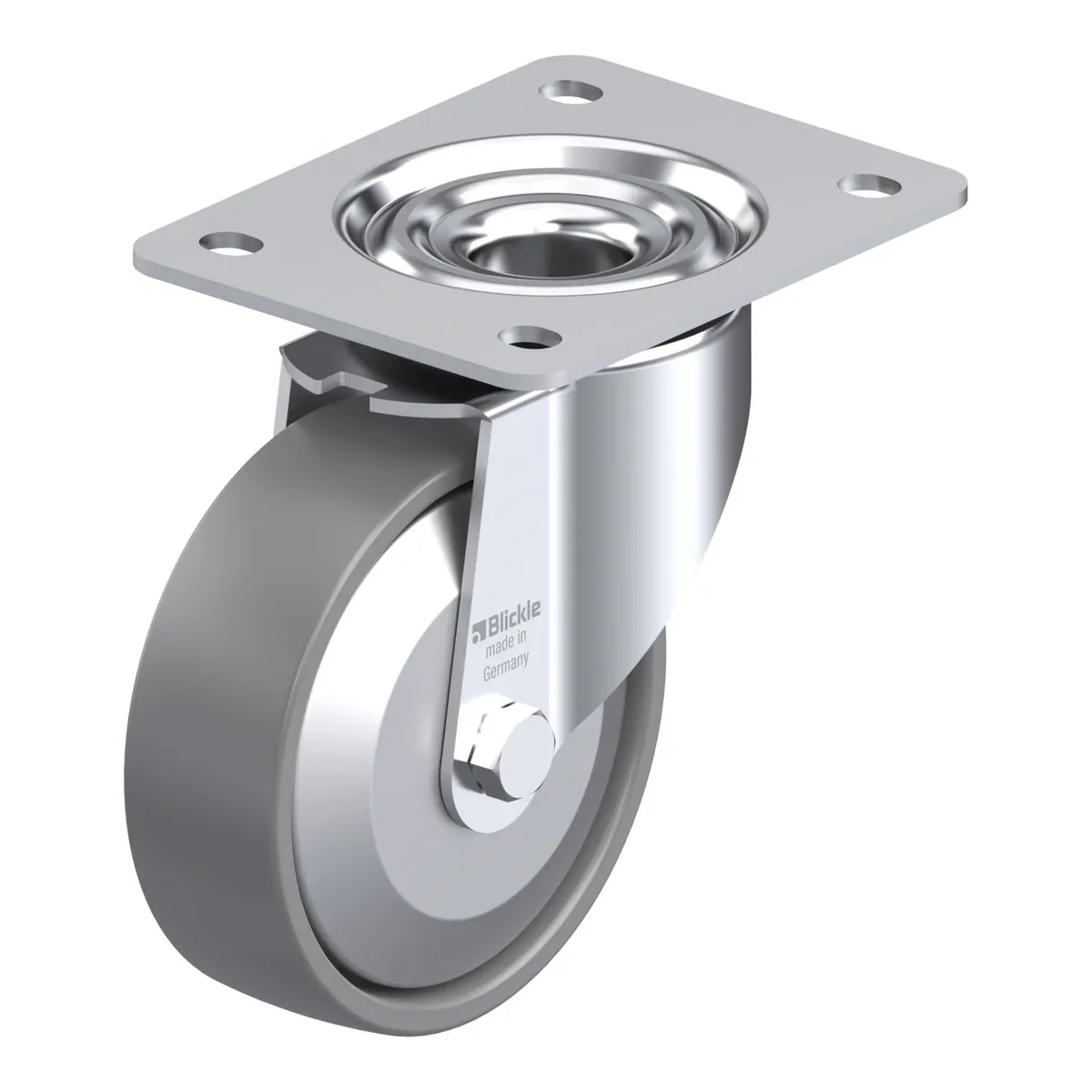

LK-PO 125KA-3-ELS-FA – okretni točkić Blickle

Šifra 946799

LK-PO 125KA-3-ELS-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-PO 125KA-3-ELS-FA je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 155 mm. Cijena je 103.39 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, nylon wheel, with synthetic thread guard, small, with steel thread guard, electrically conductive, non-marking

103.39 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla946799
EAN4047526372842
Promjer točka125 mm
Širina točka40 mm
Ukupna visina155 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset48 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • with synthetic thread guard, small
  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
