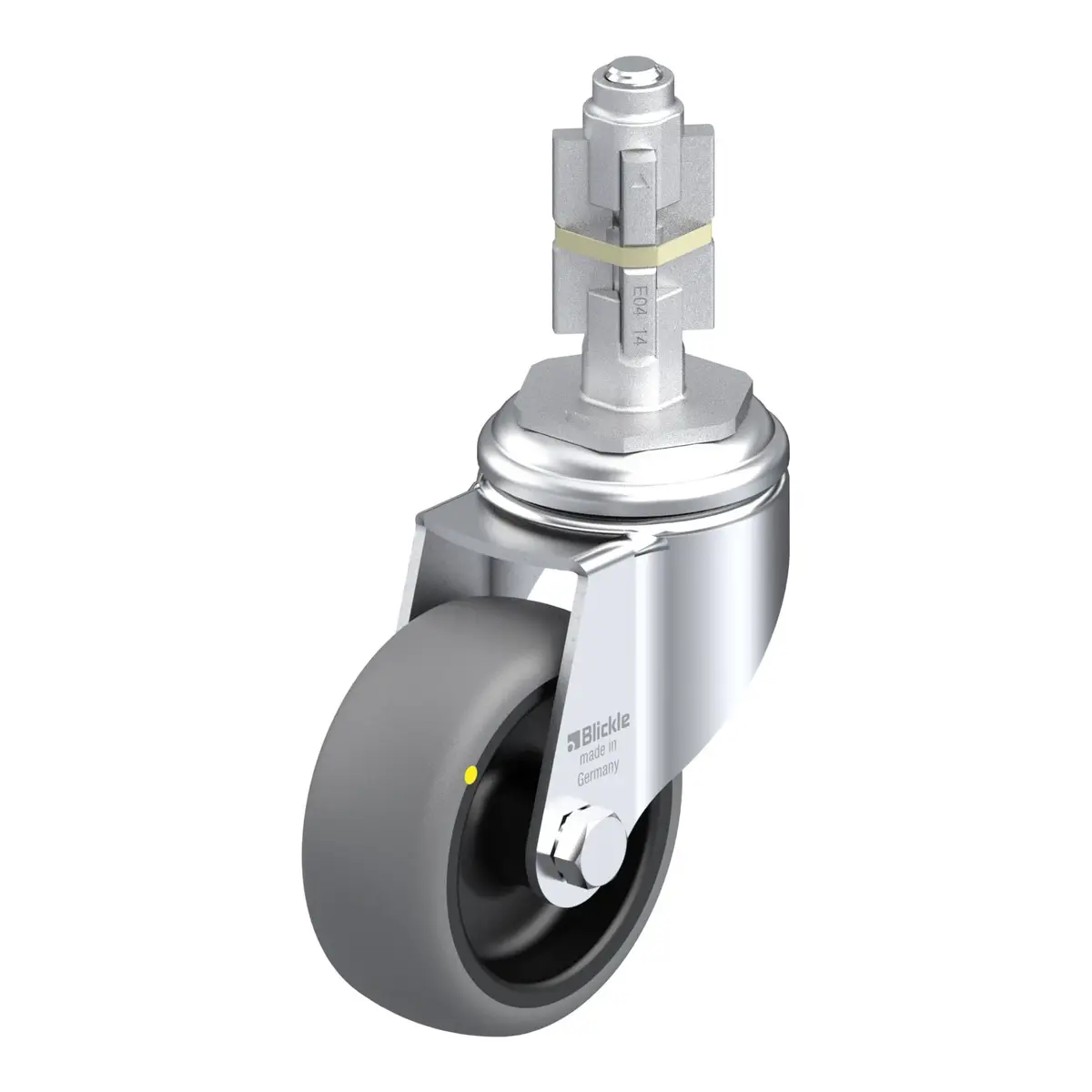

LKRA-TPA 80G-11-ELS-E14 – okretni točkić Blickle

Šifra 750745

LKRA-TPA 80G-11-ELS-E14

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRA-TPA 80G-11-ELS-E14 je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 65 kg pri 4 km/h (statički 162.5 kg). Ukupna visina je 111 mm. Cijena je 55.25 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with metal expander, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, electrically conductive, non-marking

55.25 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla750745
EAN4047526034351
Promjer točka80 mm
Širina točka32 mm
Ukupna visina111 mm
Nosivost pri 4 km/h65 kg
Statička nosivost162.5 kg
Offset40 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
