Šifra 852655
LK-PO 82G-ST

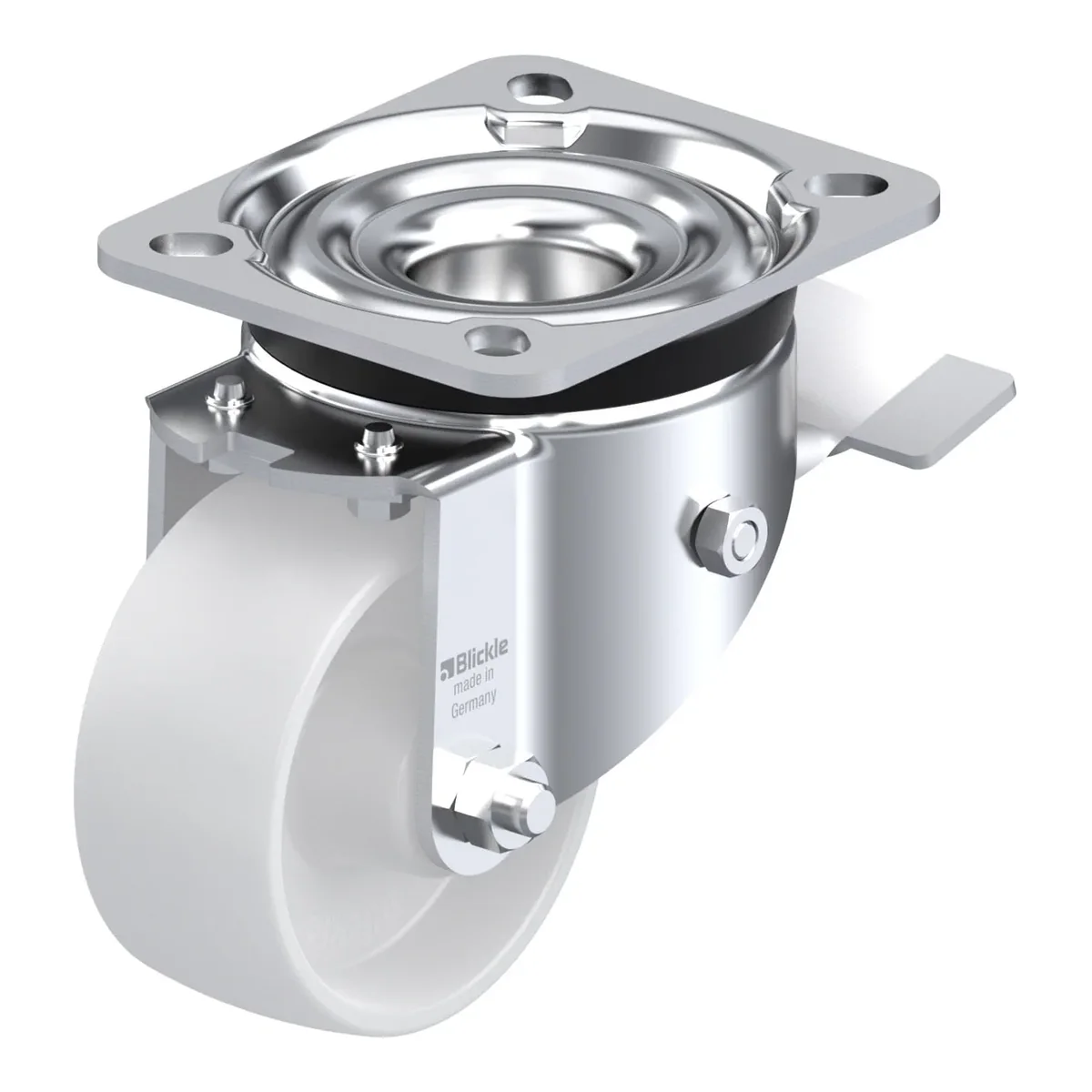

Okretni točkić, Blickle, Made in Germany
Ukratko: LK-PO 82G-ST je okretni točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 230 kg pri 4 km/h (statički 575 kg). Ukupna visina je 110 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 78.92 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, with brake system 'stop-top', nylon wheel
78.92 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 852655 |
|---|---|
| EAN | 4047526195342 |
| Promjer točka | 80 mm |
| Širina točka | 37 mm |
| Ukupna visina | 110 mm |
| Nosivost pri 4 km/h | 230 kg |
| Statička nosivost | 575 kg |
| Veličina ploče | 100 x 85 mm |
| Razmak rupa | 65.0 x 55.0 mm |
| Offset | 40 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -25 °C do 70 °C |
| Težina | 1 kg |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
