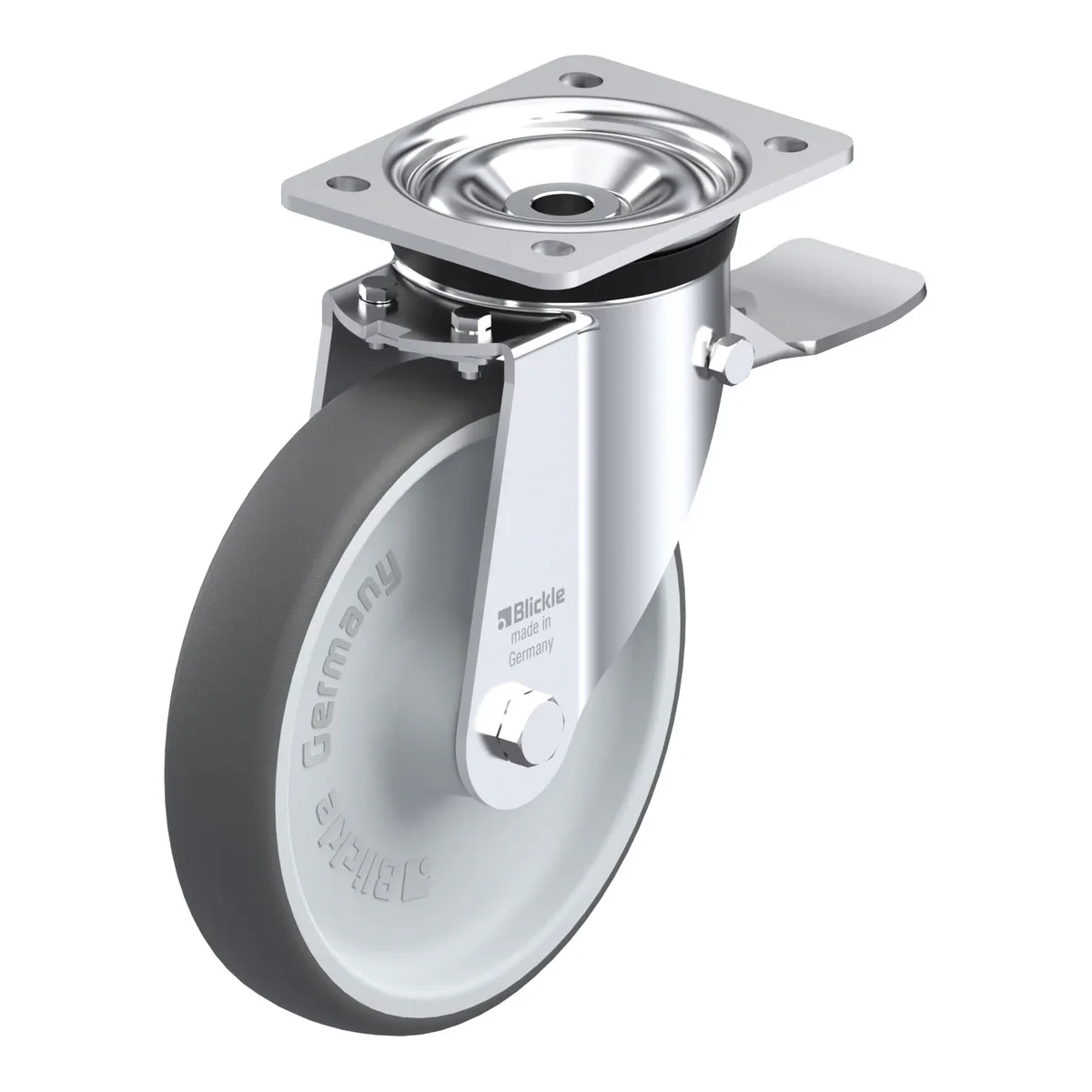

LK-PATH 200R-ST – okretni točkić Blickle

Šifra 852274

LK-PATH 200R-ST

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-PATH 200R-ST je okretni točkić Blickle promjera 200 mm, širine 40 mm, nosivosti 500 kg pri 4 km/h (statički 1250 kg). Ukupna visina je 245 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 201.87 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-top', wheel, with thermoplastic polyurethane tread, with nylon wheel centre

201.87 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852274
EAN4047526189969
Promjer točka200 mm
Širina točka40 mm
Ukupna visina245 mm
Nosivost pri 4 km/h500 kg
Statička nosivost1250 kg
Veličina ploče140 x 110 mm
Razmak rupa105.0 x 80.0 mm
Offset62 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-25 °C do 70 °C
Težina3.4 kg
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
