Šifra 850022

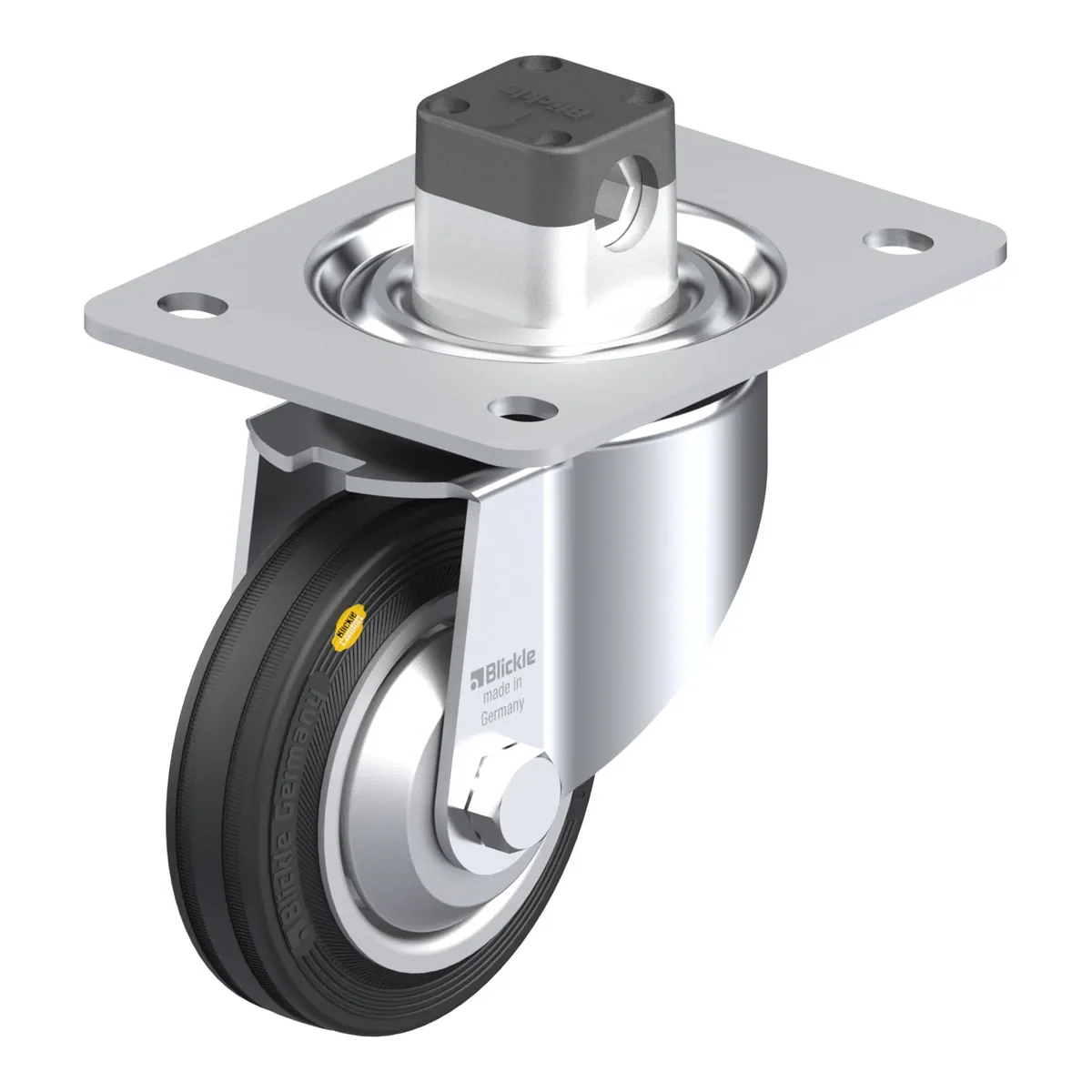

LK-RD 100R-3-CS11-FA
Okretni točkić, Blickle, Made in Germany
Ukratko: LK-RD 100R-3-CS11-FA je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 130 mm. Cijena je 121.18 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, with central brake system 'central-stop', wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim, with steel thread guard
121.18 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 850022 |
|---|---|
| EAN | 4047526159078 |
| Promjer točka | 100 mm |
| Širina točka | 30 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: two-component solid rubber "Blickle Comfort", hardness 65 Shore A, colour black
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
