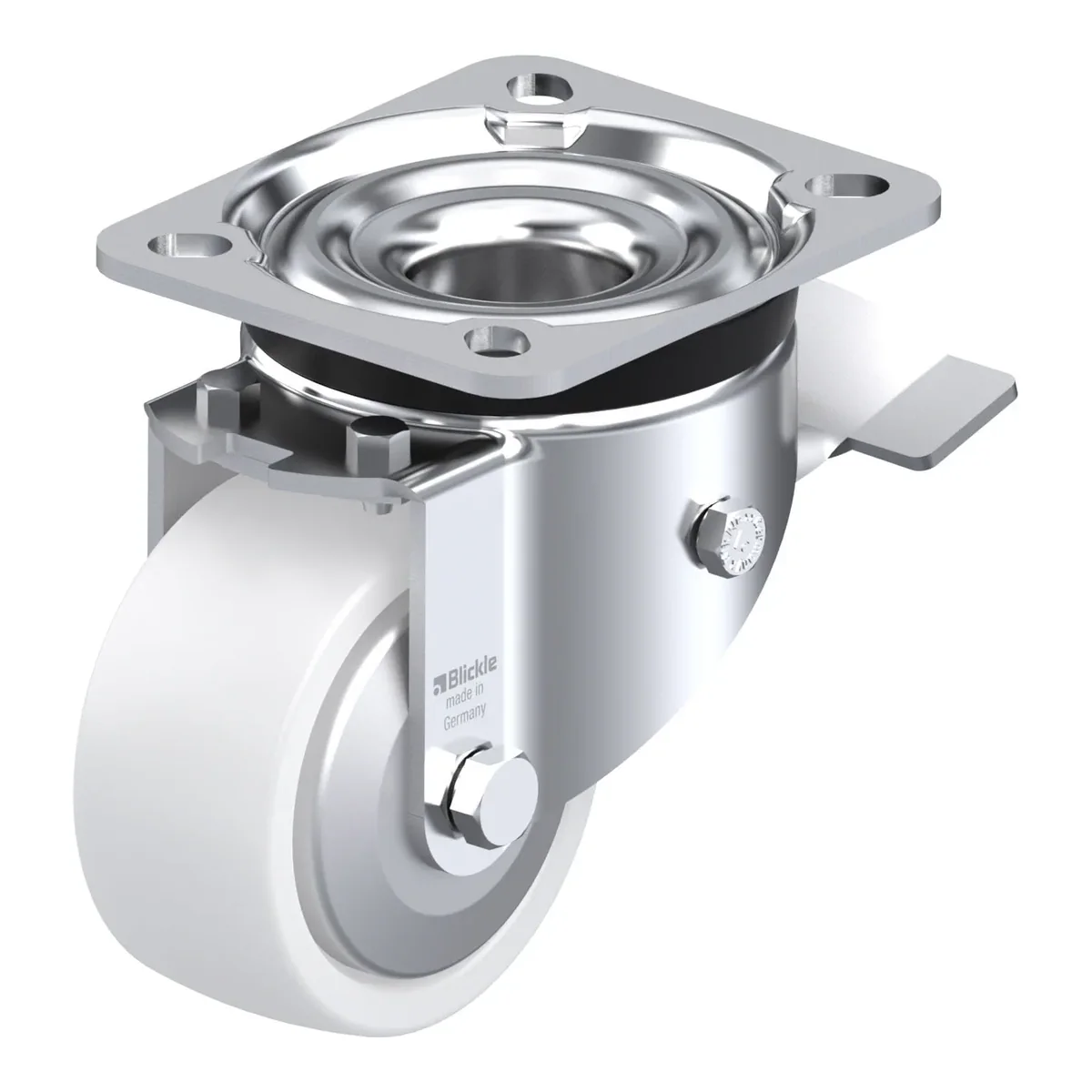

LK-SPO 80K-ST-FA – okretni točkić Blickle

Šifra 852830

LK-SPO 80K-ST-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-SPO 80K-ST-FA je okretni točkić Blickle promjera 80 mm, širine 37 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 110 mm. Cijena je 110.02 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-top', nylon heavy duty wheel, with steel thread guard

110.02 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852830
EAN4047526197704
Promjer točka80 mm
Širina točka37 mm
Ukupna visina110 mm
Nosivost pri 4 km/h350 kg
Statička nosivost875 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
