Šifra 612358
LK-SE 125K

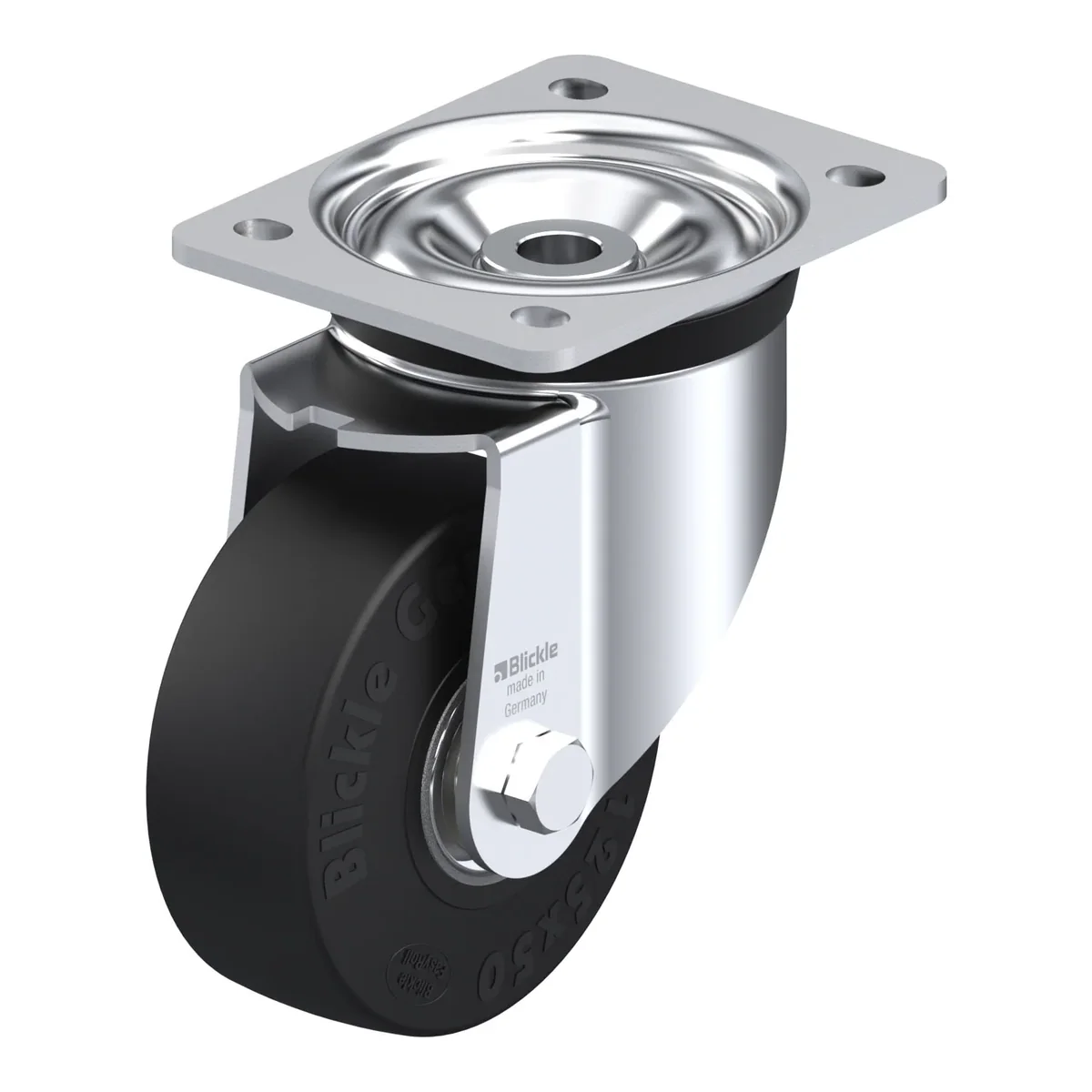

Okretni točkić, Blickle, Made in Germany
Ukratko: LK-SE 125K je okretni točkić Blickle promjera 125 mm, širine 53 mm, nosivosti 320 kg pri 4 km/h (statički 800 kg). Ukupna visina je 170 mm. Cijena je 142.42 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre
142.42 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 612358 |
|---|---|
| EAN | 4047526612351 |
| Promjer točka | 125 mm |
| Širina točka | 53 mm |
| Ukupna visina | 170 mm |
| Nosivost pri 4 km/h | 320 kg |
| Statička nosivost | 800 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 55 mm |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour blackwheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
