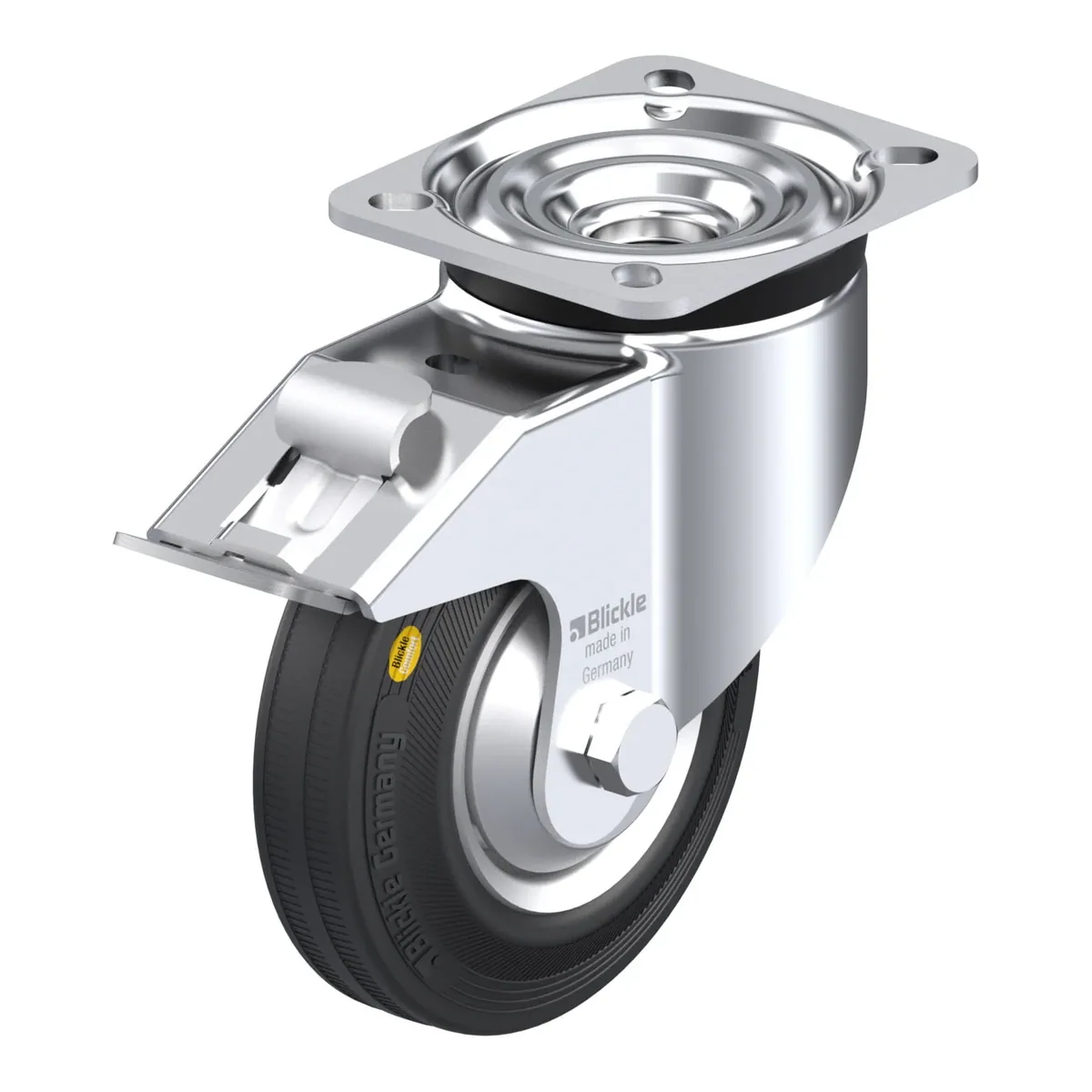

LK-RD 125R-1-FI-FA – okretni točkić Blickle

Šifra 740100

LK-RD 125R-1-FI-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LK-RD 125R-1-FI-FA je okretni točkić Blickle promjera 125 mm, širine 37.5 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 155 mm. Cijena je 100.39 KM s PDV-om.

Pressed steel swivel castor, Heavy duty design, with brake system 'stop-fix', wheel, with 'Blickle Comfort' two-component solid rubber tyres, with pressed steel rim, with steel thread guard

100.39 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla740100
EAN4047526029135
Promjer točka125 mm
Širina točka37.5 mm
Ukupna visina155 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče100 x 85 mm
Razmak rupa65.0 x 55.0 mm
Offset46 mm

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin (from wheel Ø 125x50 mm)
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: two-component solid rubber "Blickle Comfort", hardness 65 Shore A, colour black
  • rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free

Dodatne karakteristike

  • chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
