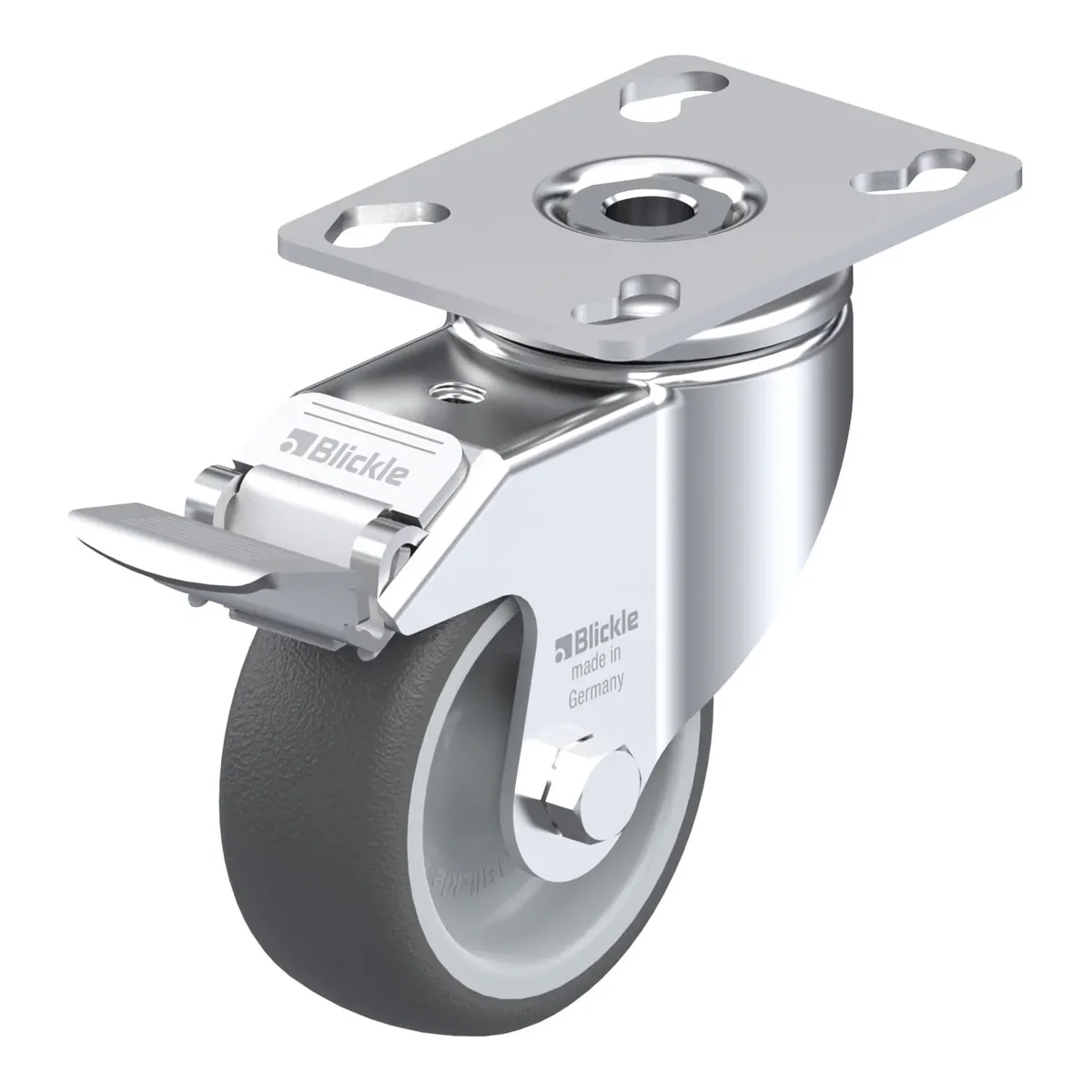

LKPA-PATH 80G-FI – okretni točkić Blickle

Šifra 275537

LKPA-PATH 80G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LKPA-PATH 80G-FI je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 111 mm. Cijena je 44.13 KM s PDV-om.

Light duty swivel castor, with top plate fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with nylon wheel centre

44.13 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla275537
EAN4047526275532
Promjer točka80 mm
Širina točka32 mm
Ukupna visina111 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče90 x 66 mm
Razmak rupa55.0 x 36.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
