Šifra 259887
LK-SPO 100G-3

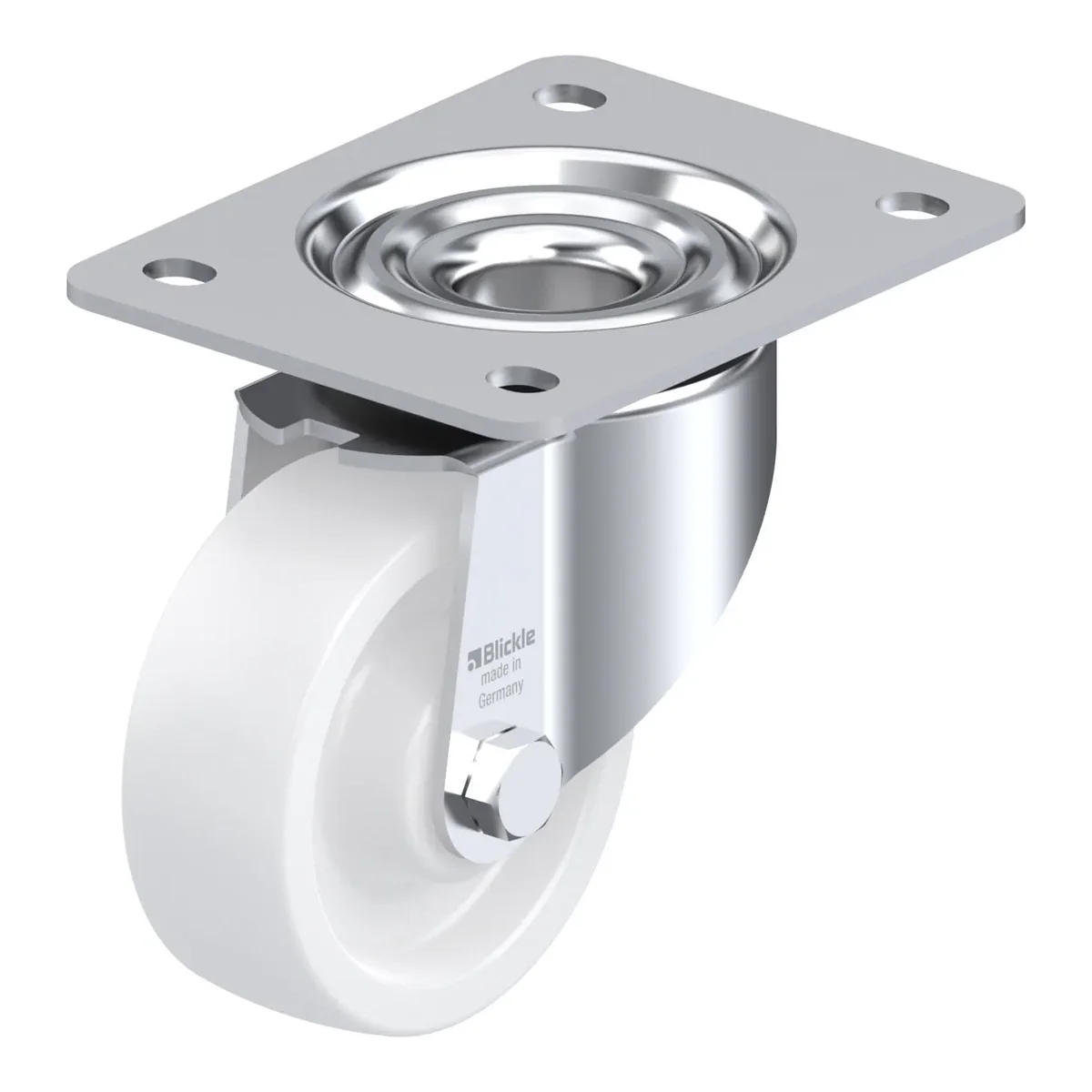

Okretni točkić, Blickle, Made in Germany
Ukratko: LK-SPO 100G-3 je okretni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 350 kg pri 4 km/h (statički 875 kg). Ukupna visina je 130 mm. Cijena je 54.42 KM s PDV-om.
Pressed steel swivel castor, Heavy duty design, nylon heavy duty wheel
54.42 KM
Redovna cijena 60.47 KM, akcija −10%
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 259887 |
|---|---|
| EAN | 4047526259884 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 350 kg |
| Statička nosivost | 875 kg |
| Veličina ploče | 140 x 110 mm |
| Razmak rupa | 105.0 x 80.0 mm |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
