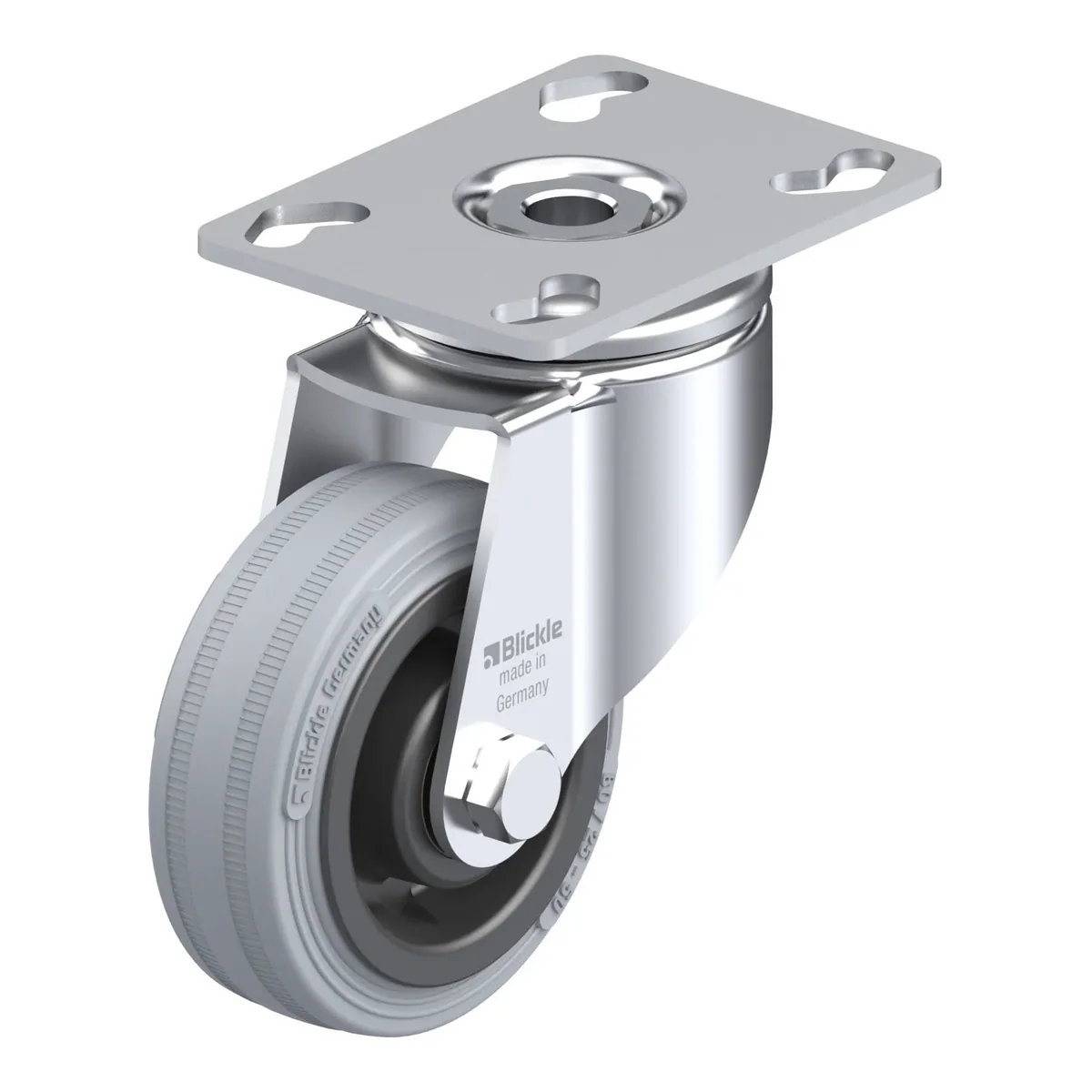

LKPA-VPA 80K – okretni točkić Blickle

Šifra 225359

LKPA-VPA 80K

Okretni točkić, Blickle, Made in Germany

Ukratko: LKPA-VPA 80K je okretni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 111 mm. Cijena je 32.90 KM s PDV-om.

Light duty swivel castor, with top plate fitting, wheel, with solid rubber tyres, with synthetic rim

32.90 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla225359
EAN4047526225353
Promjer točka80 mm
Širina točka25 mm
Ukupna visina111 mm
Nosivost pri 4 km/h80 kg
Statička nosivost200 kg
Veličina ploče90 x 66 mm
Razmak rupa55.0 x 36.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
  • rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
