Šifra 747475

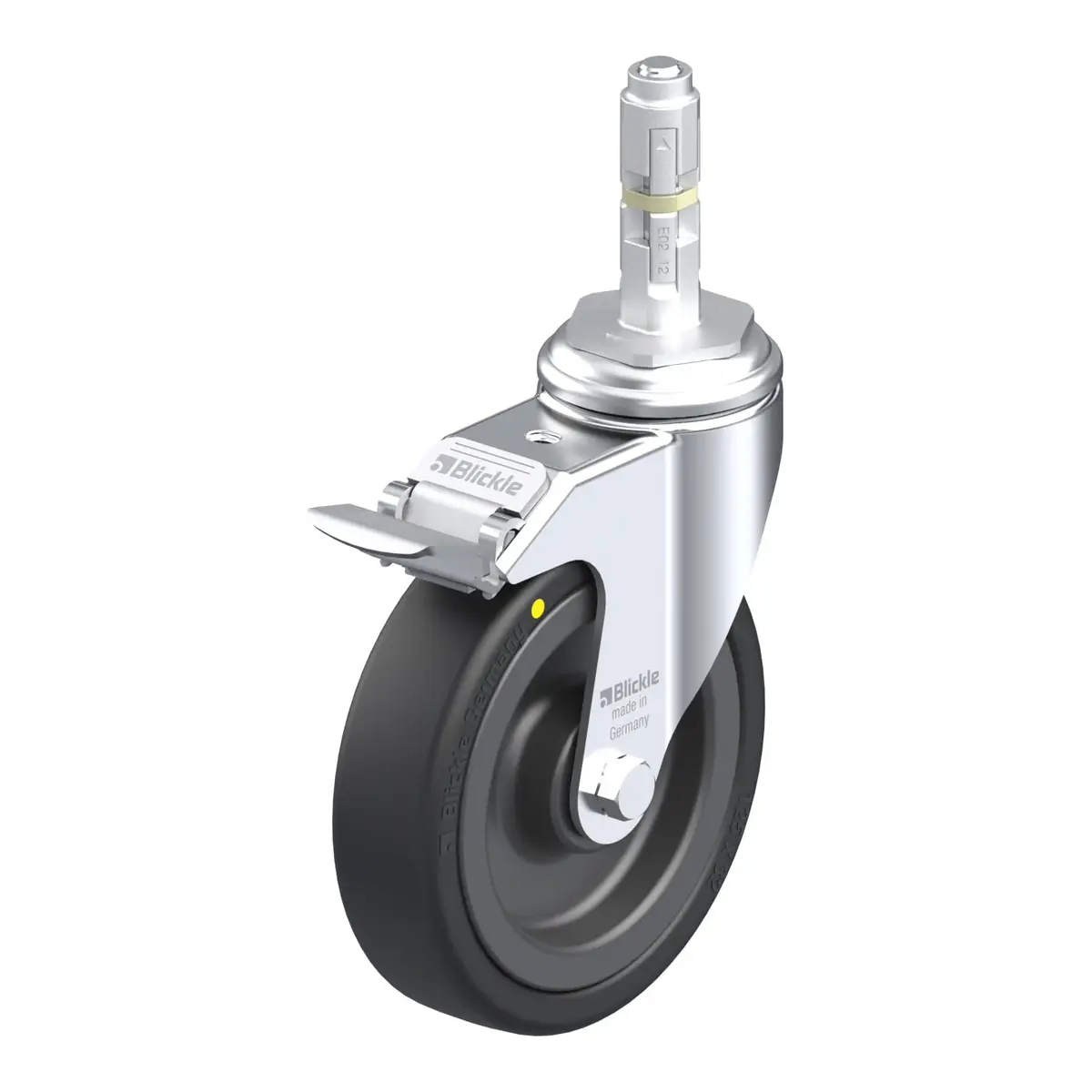

LKRA-VPA 126K-11-FI-EL-E12
Okretni točkić, Blickle, Made in Germany
Ukratko: LKRA-VPA 126K-11-FI-EL-E12 je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 95 kg pri 4 km/h (statički 237.5 kg). Ukupna visina je 161 mm. Cijena je 84.52 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with metal expander, with brake system 'stop-fix', wheel, with solid rubber tyres, with synthetic rim, electrically conductive
84.52 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 747475 |
|---|---|
| EAN | 4047526036096 |
| Promjer točka | 125 mm |
| Širina točka | 32 mm |
| Ukupna visina | 161 mm |
| Nosivost pri 4 km/h | 95 kg |
| Statička nosivost | 237.5 kg |
| Offset | 40 mm |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
