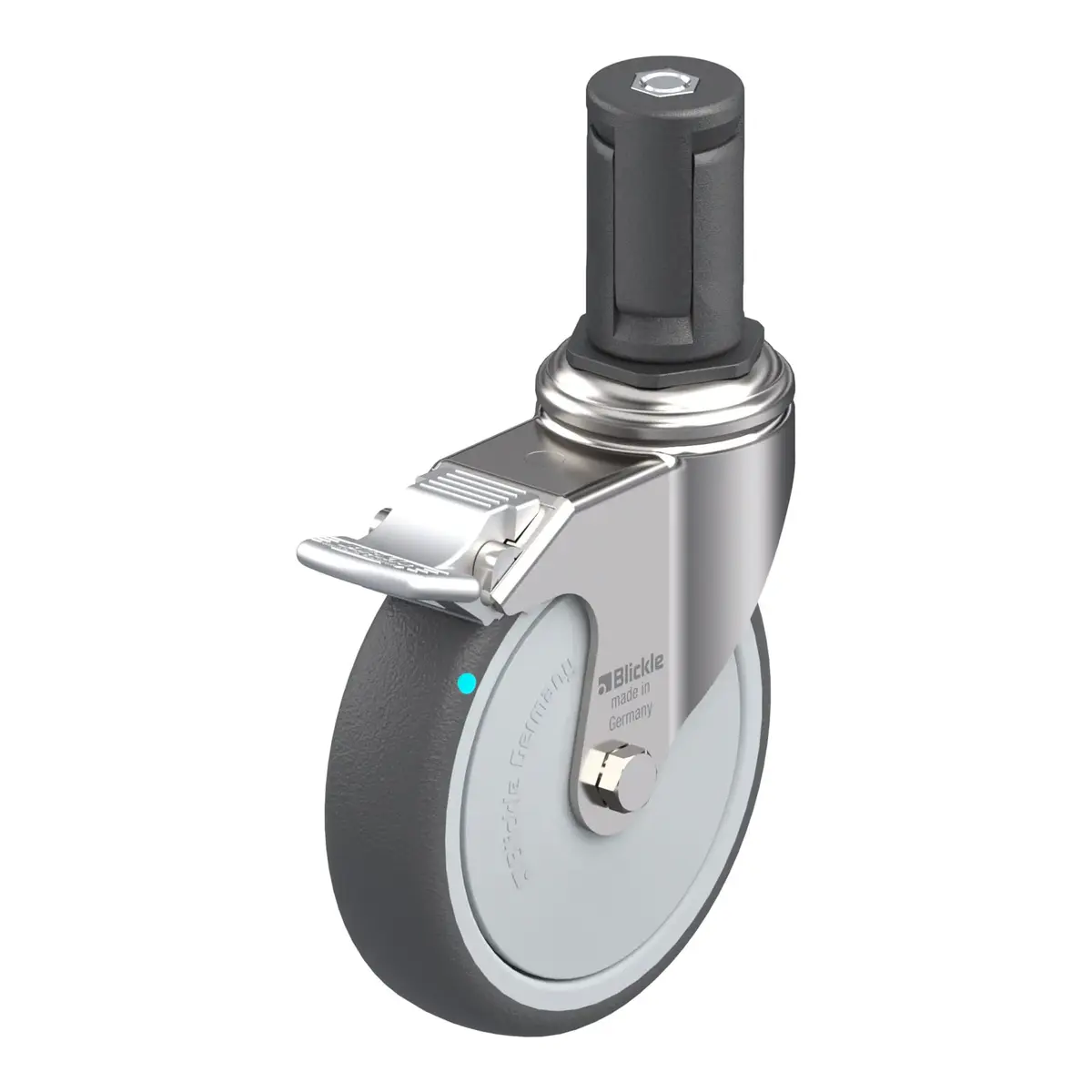

LKRXA-PATH 101KFD-11-FI-EXR15 – okretni točkić Blickle

Šifra 853450

LKRXA-PATH 101KFD-11-FI-EXR15

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRXA-PATH 101KFD-11-FI-EXR15 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 136 mm. Cijena je 120.09 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals

120.09 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853450
EAN4047526206178
Promjer točka100 mm
Širina točka32 mm
Ukupna visina136 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
