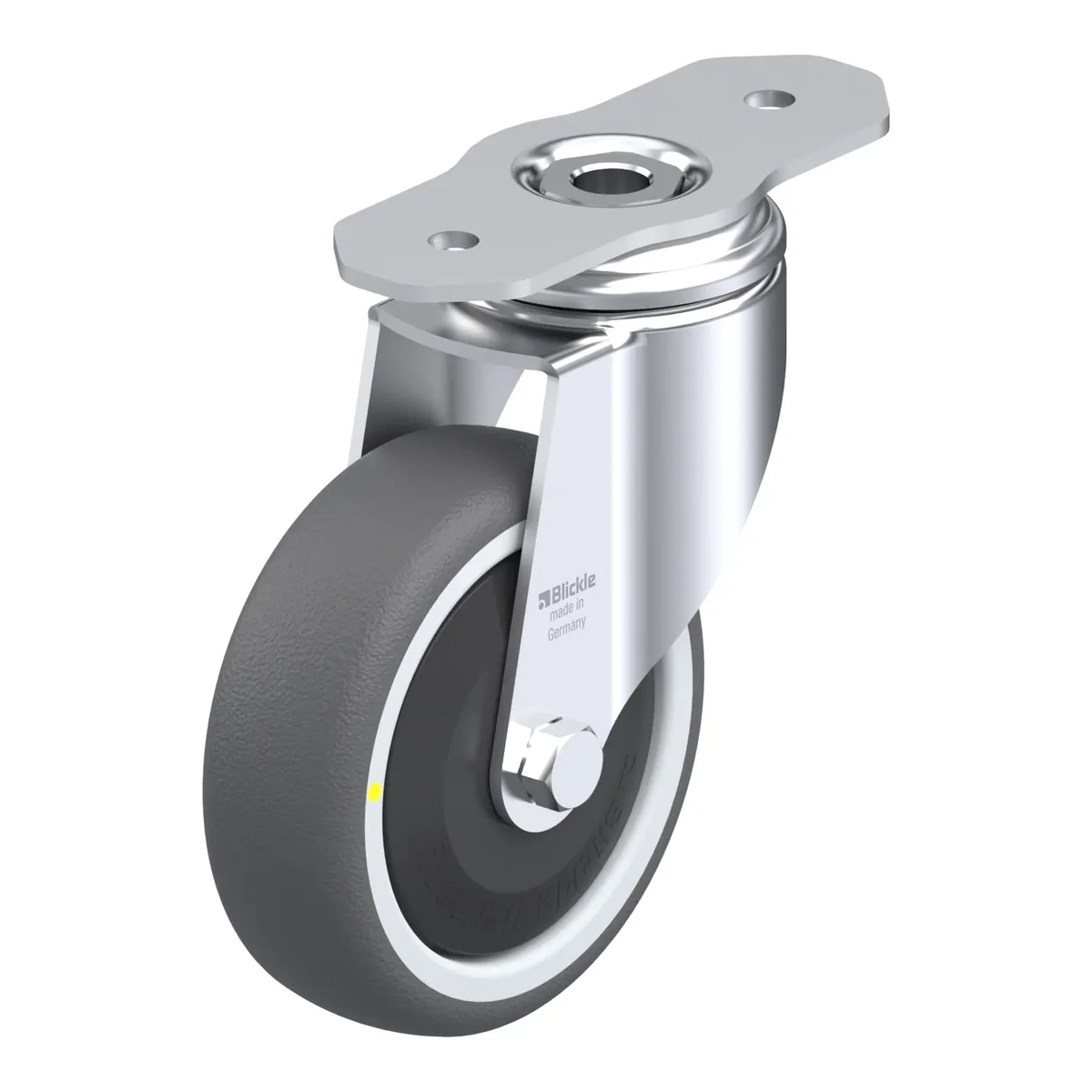

LKPA-PATH 101KF-29-ELS – okretni točkić Blickle

Šifra 977251

LKPA-PATH 101KF-29-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LKPA-PATH 101KF-29-ELS je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 136 mm. Cijena je 71.45 KM s PDV-om.

Light duty swivel caster, with top plate fitting, plate suitable for standard aluminium profiles,wheel with thermoplastic polyuretha ne tread, with nylon wheel center, with synthetic thread guard, large, electrically conductive, Non-marking

71.45 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla977251
EAN4047526428020
Promjer točka100 mm
Širina točka32 mm
Ukupna visina136 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče120 x 40 mm
Razmak rupa85.0 x 10.0 mm
Offset40 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
