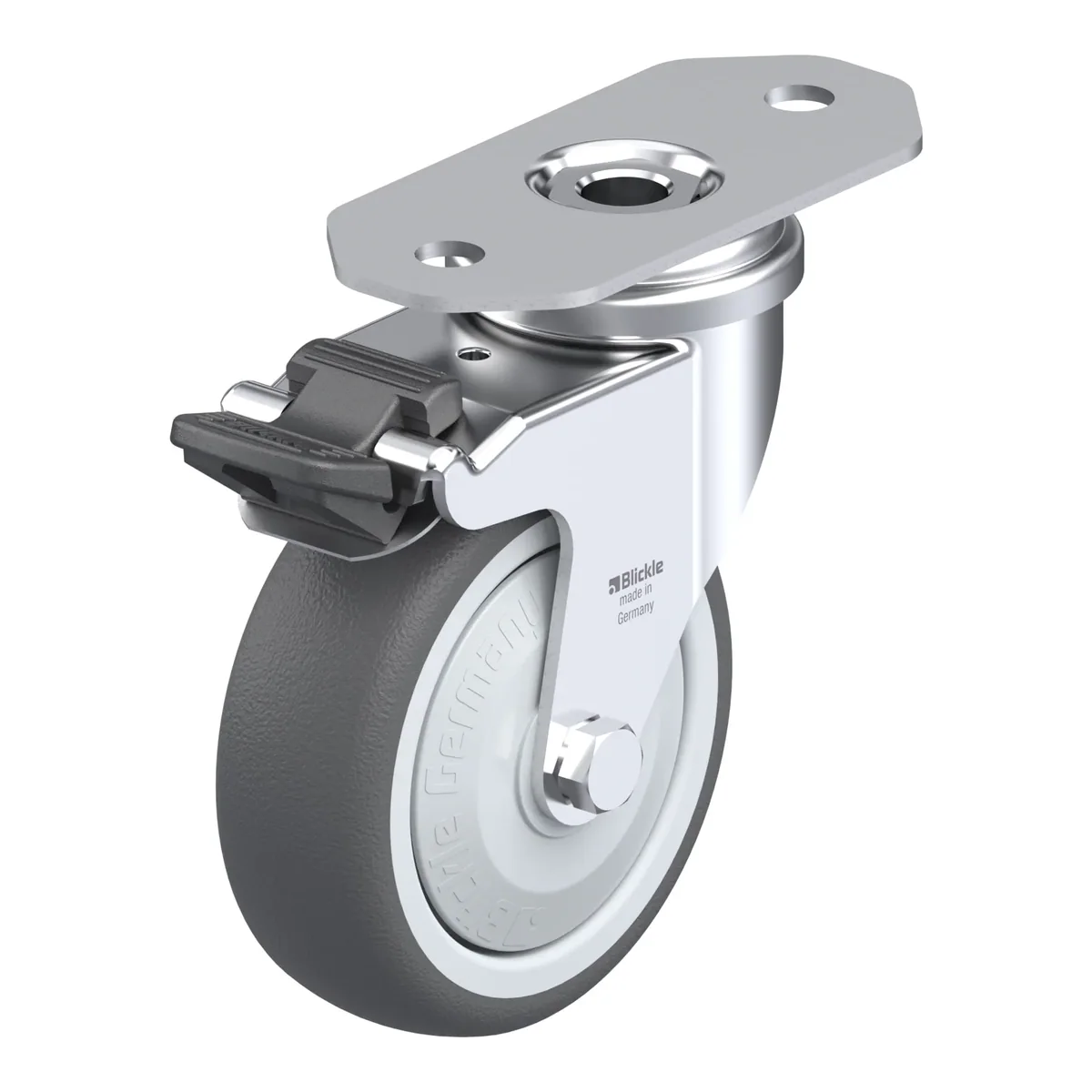

LPA-PATH 75KF-291-FI – okretni točkić Blickle

Šifra 978717

LPA-PATH 75KF-291-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LPA-PATH 75KF-291-FI je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 100 mm. Cijena je 35.22 KM s PDV-om.

Light duty swivel caster, with top plate fitting, with brake system 'stop-fix', plate suitable for standard aluminium profiles,wheel with thermoplastic polyurethane tread, with nylon wheel center, with synthetic thread guard, large

35.22 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla978717
EAN4047526428334
Promjer točka75 mm
Širina točka25 mm
Ukupna visina100 mm
Nosivost pri 4 km/h75 kg
Statička nosivost187.5 kg
Veličina ploče90 x 40 mm
Razmak rupa55.0 x 10.0 mm
Offset28 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
